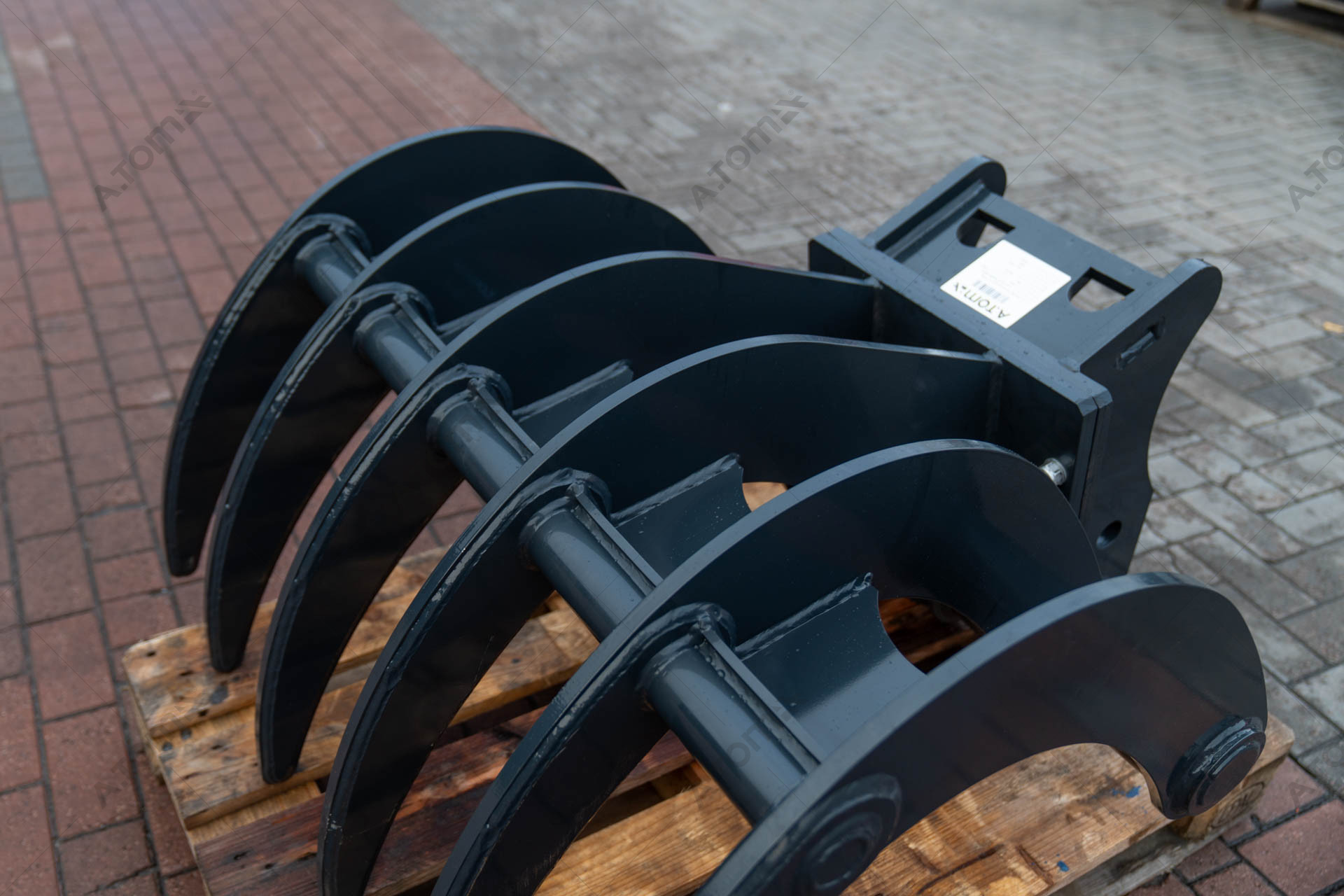

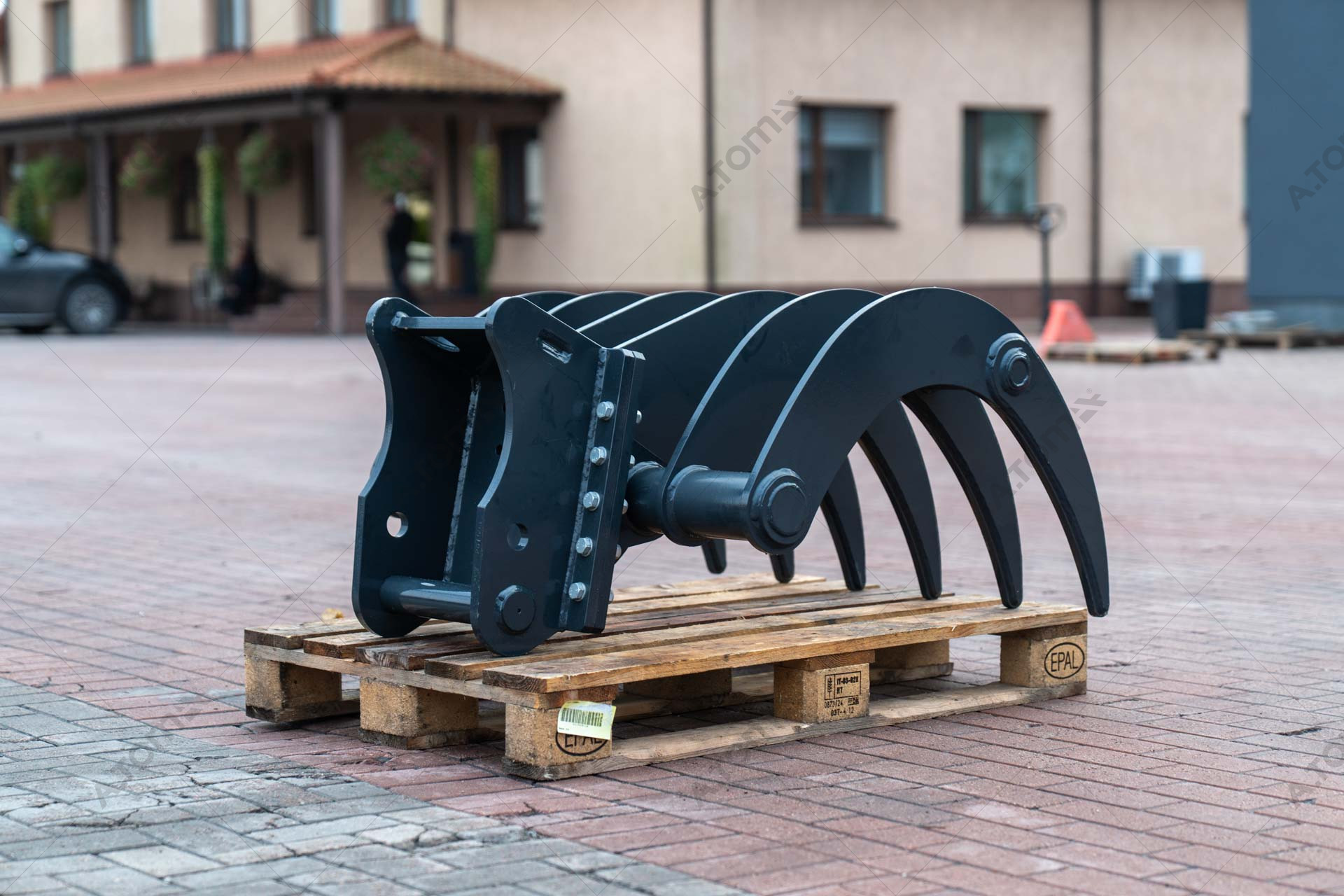

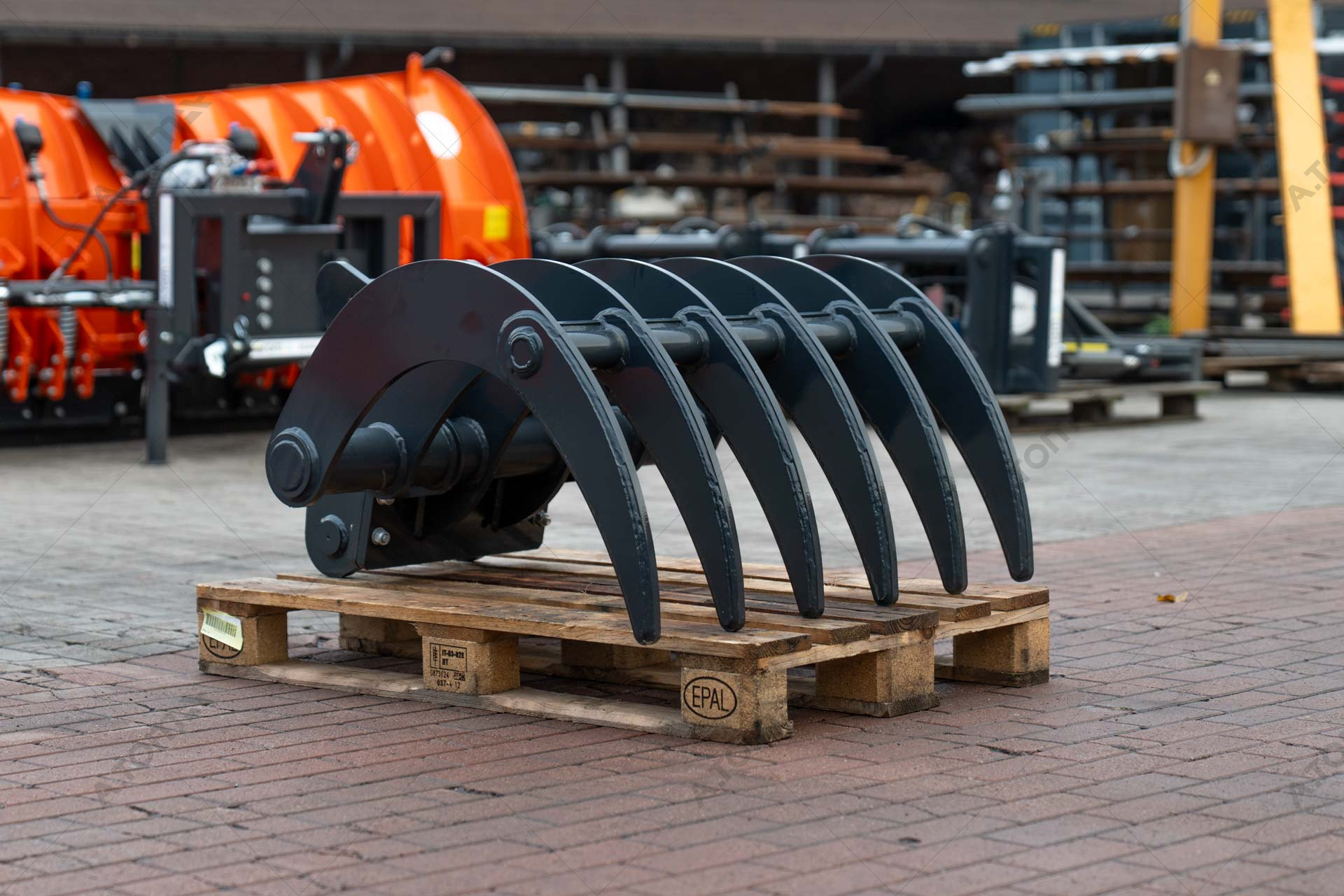

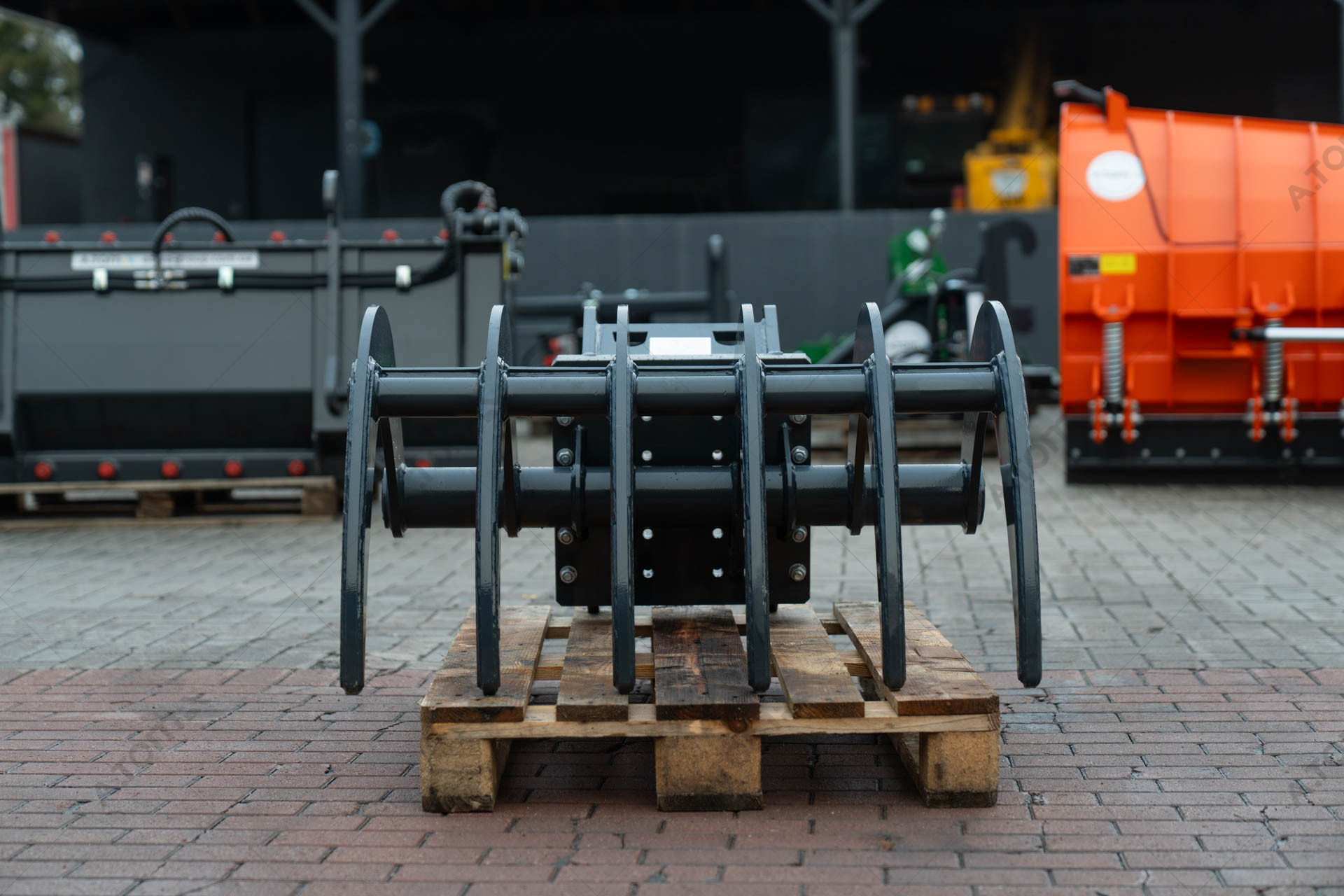

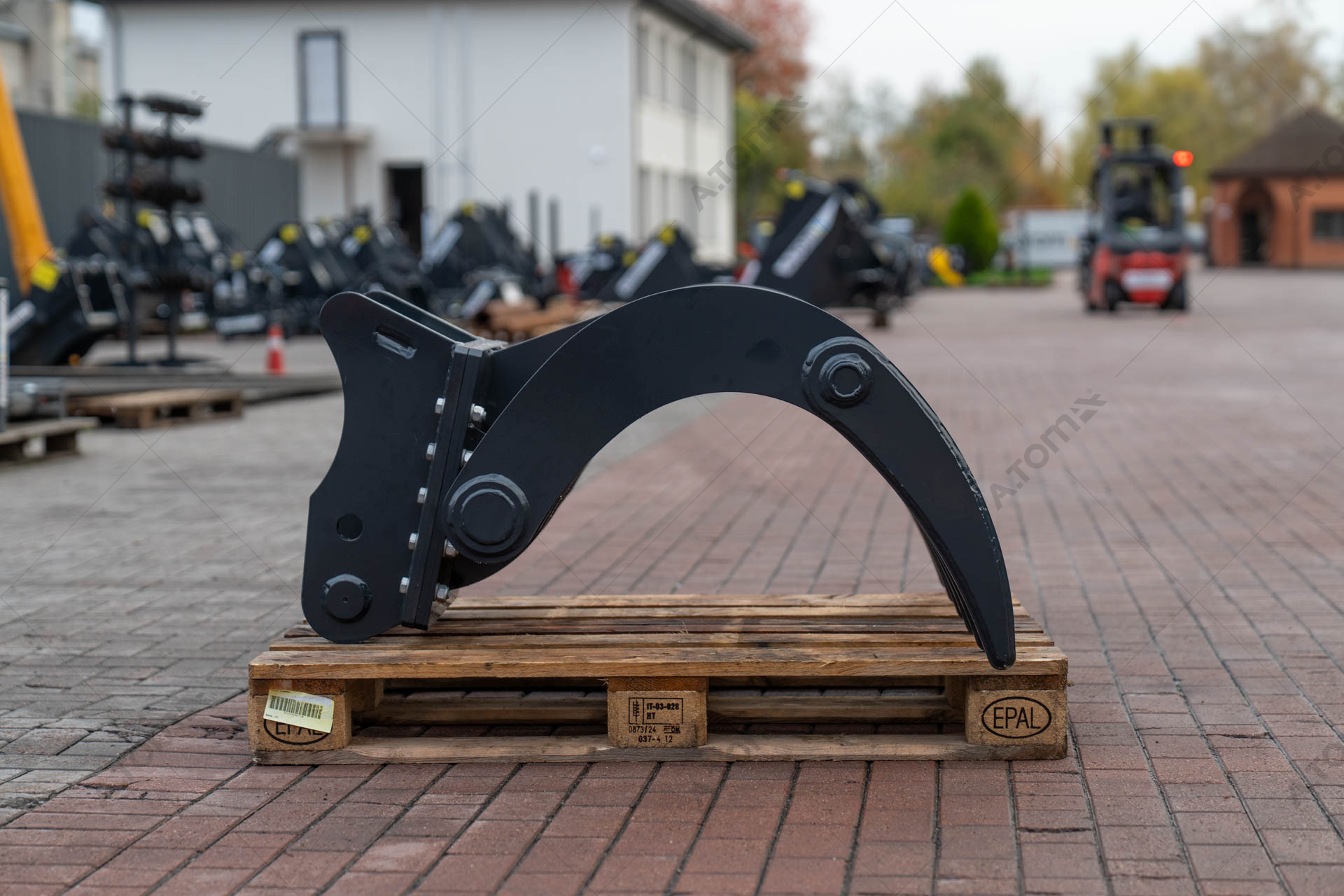

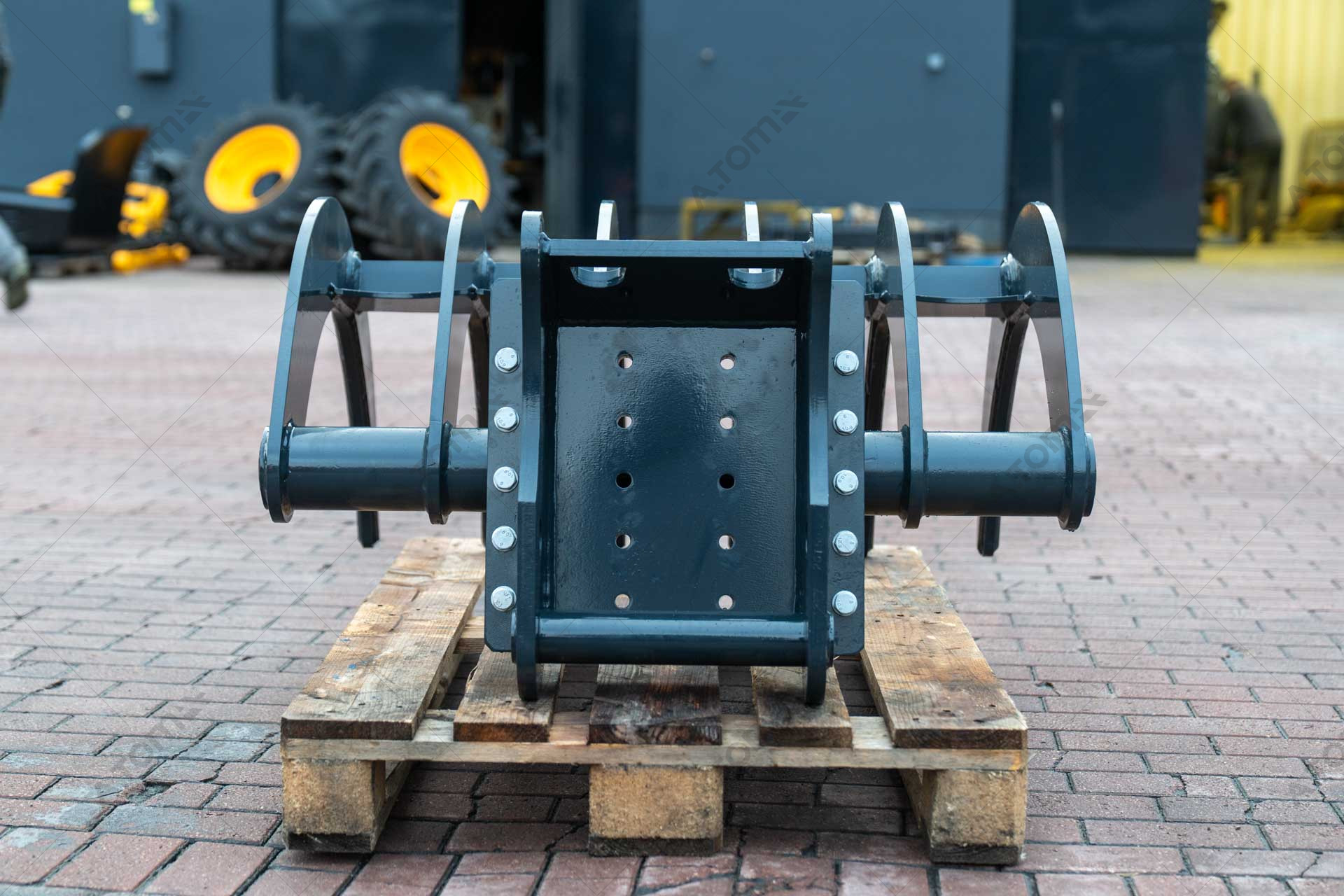

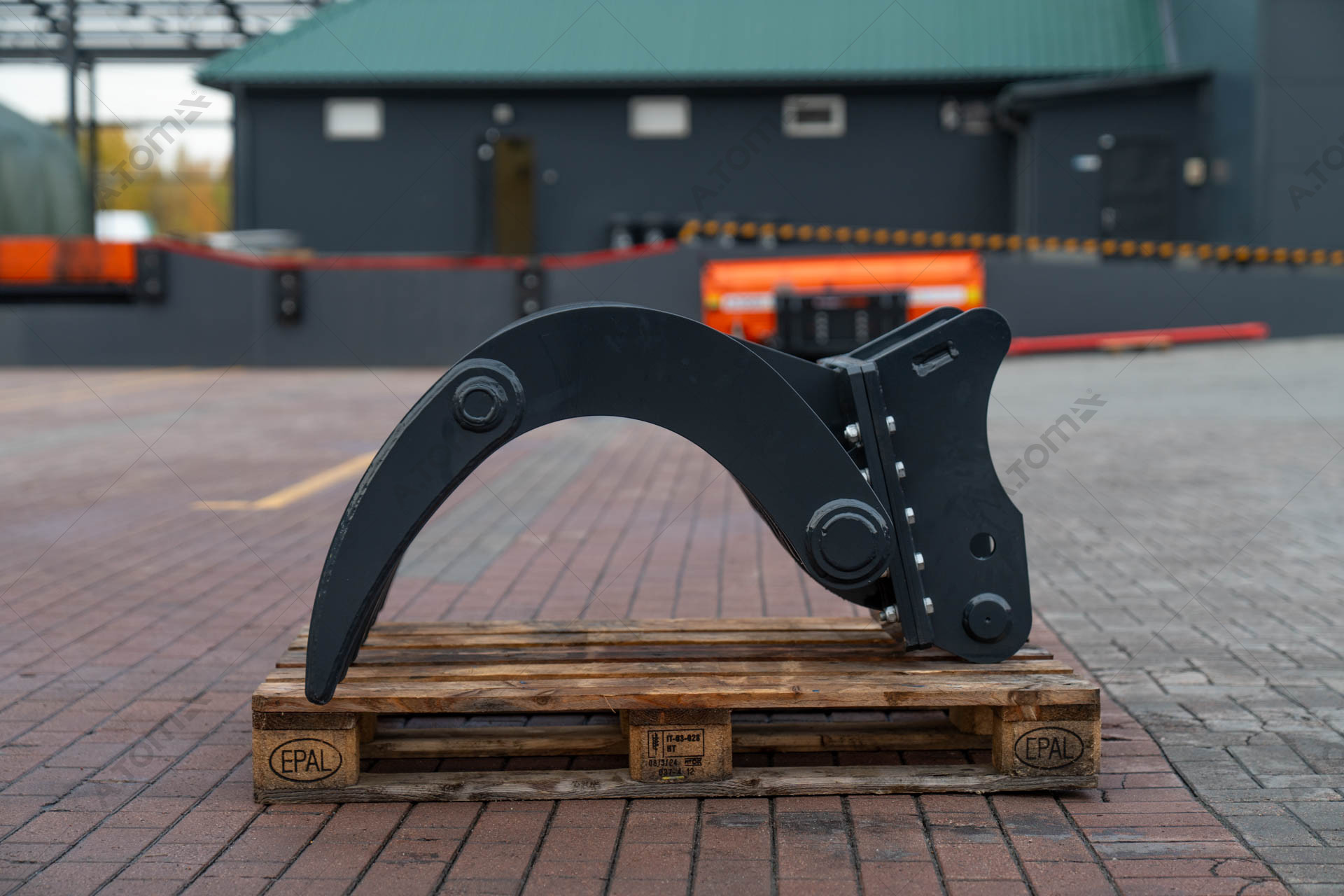

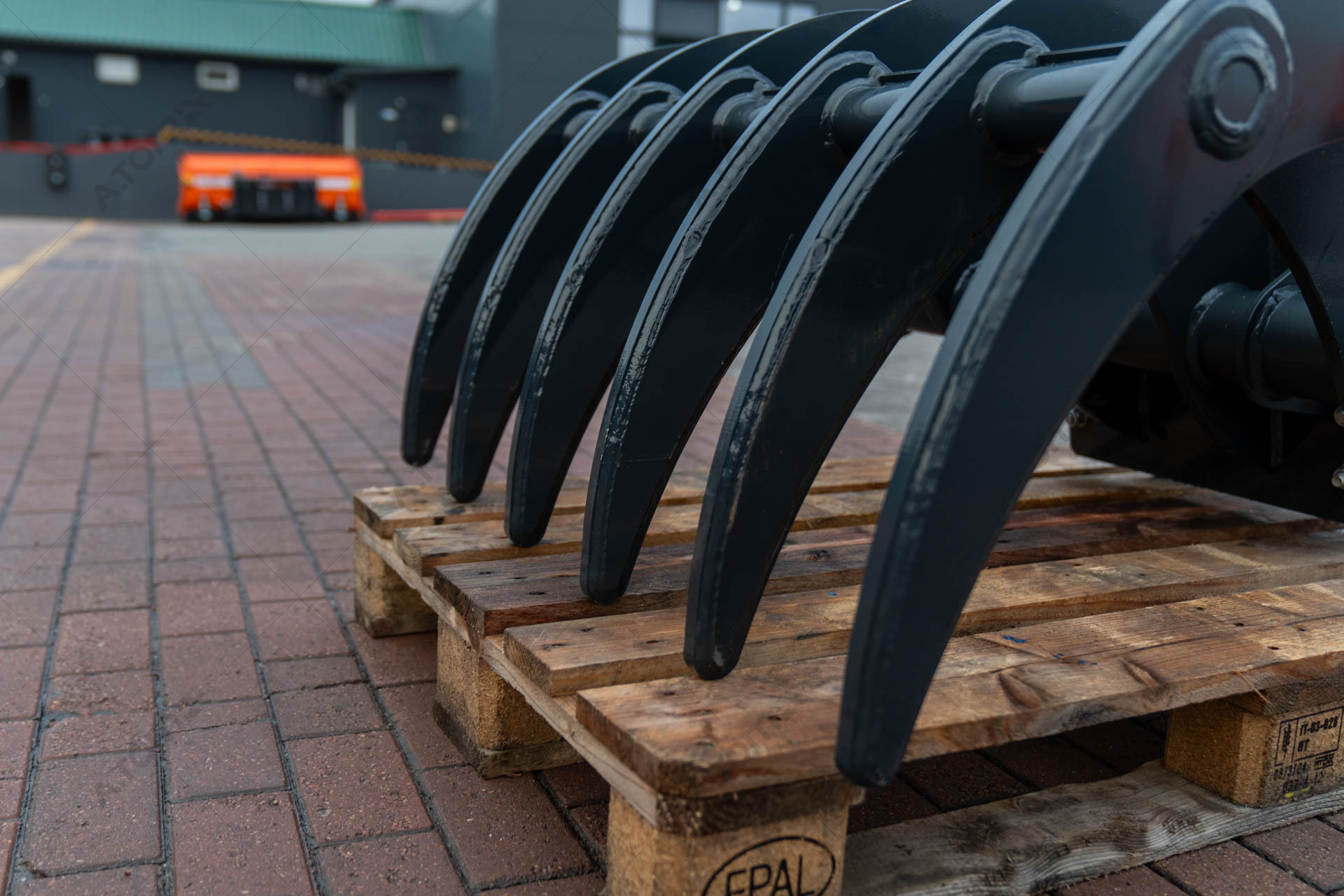

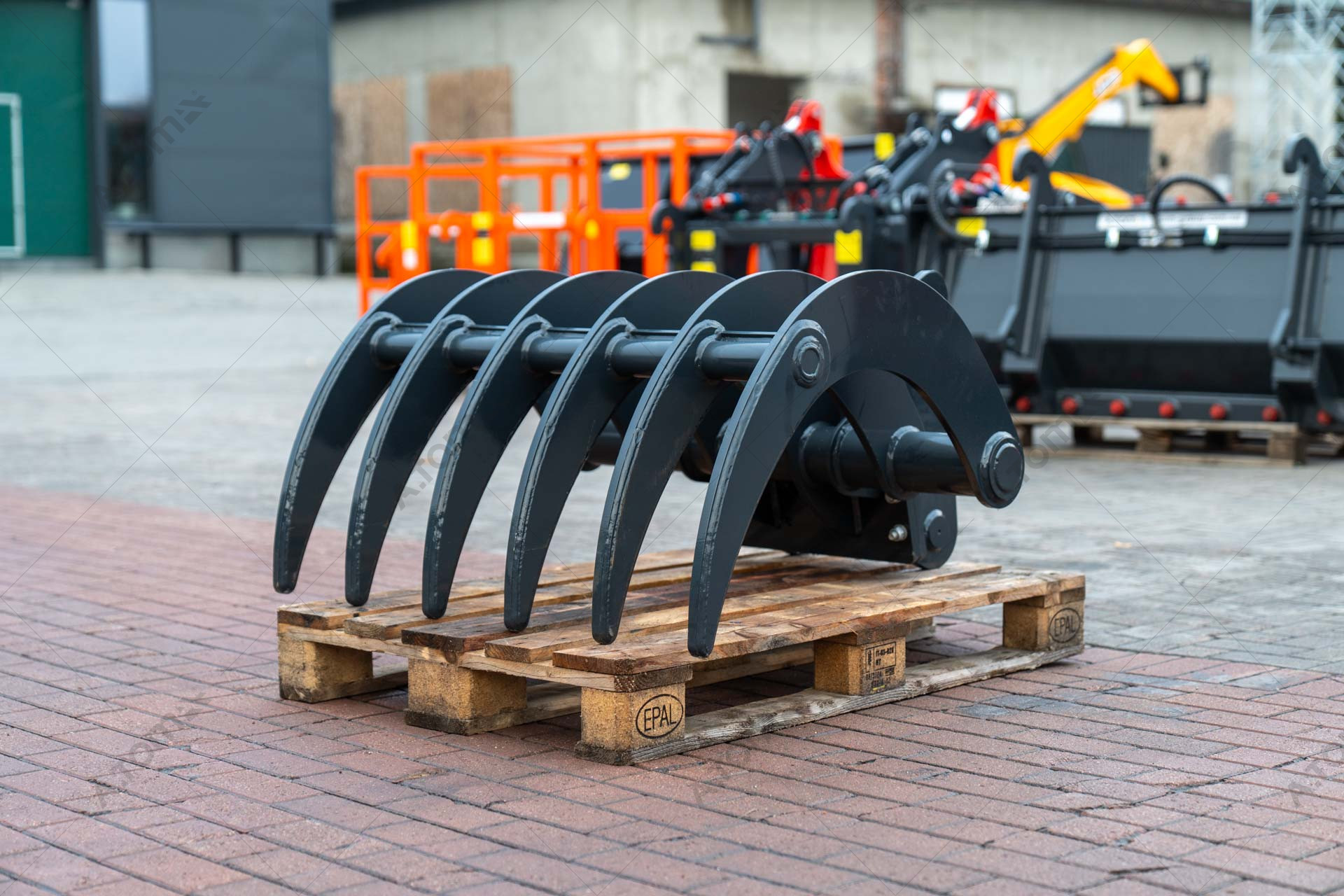

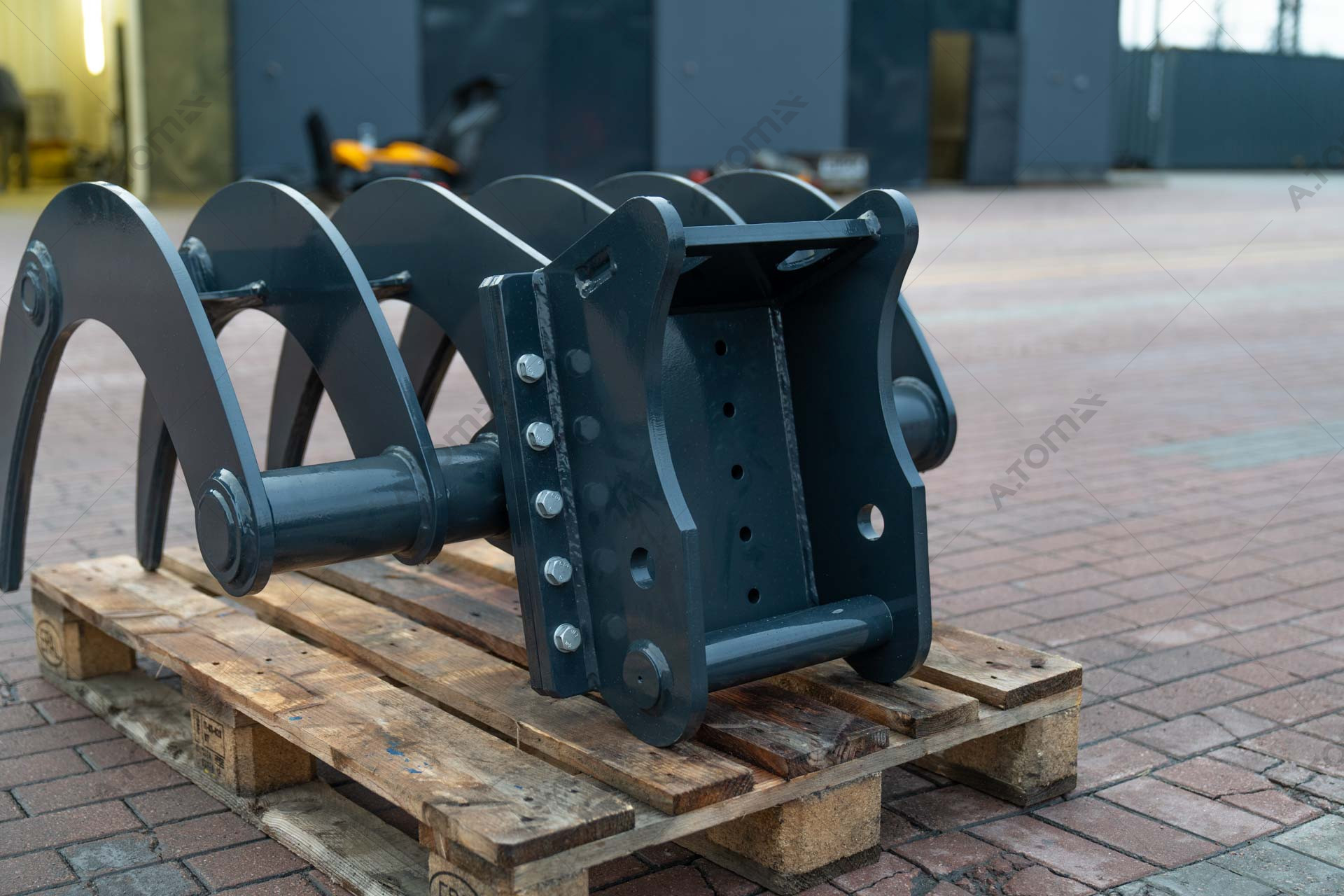

The A.TOM 1000 Grading Rake is a multifunctional attachment that transforms an excavator into a versatile machine for site preparation and cleanup. The attachment combines the functions of a rake, a grading tool, and an implement for moving and loading materials. The rake allows operators to collect stones, roots, branches, and construction debris, loosen the top layer of soil, level the surface, and load the collected materials. Thanks to its open design, soil passes between the working teeth, while larger materials are retained for further handling or loading.
Key Features
- Site cleanup: collecting roots, branches, stones, plant debris, and large construction waste.
- Material sorting: separating larger materials from fine soil.
- Surface grading: loosening the top layer of soil and performing preliminary site leveling.
- Loading: picking up, moving, and loading collected materials.
- Site preparation: clearing areas before construction, landscaping, or earthworks.
Design and Advantages
- The rake is made of S355 steel, which ensures structural strength and resistance to mechanical loads during operation.
- The carefully designed shape of the working elements allows efficient collection of large materials while allowing some of the soil to pass between the teeth.
- The main advantage of the A.TOM 1000 is its versatility. Instead of using several types of attachments, the operator can perform various tasks with a single tool. This reduces attachment changeover time, minimizes machine downtime, and increases excavator productivity.
A.TOM 1000 is more than just a conventional rake. It is a versatile tool that allows operators to clean, sort, grade, and load materials while making the most of the excavator's capabilities.

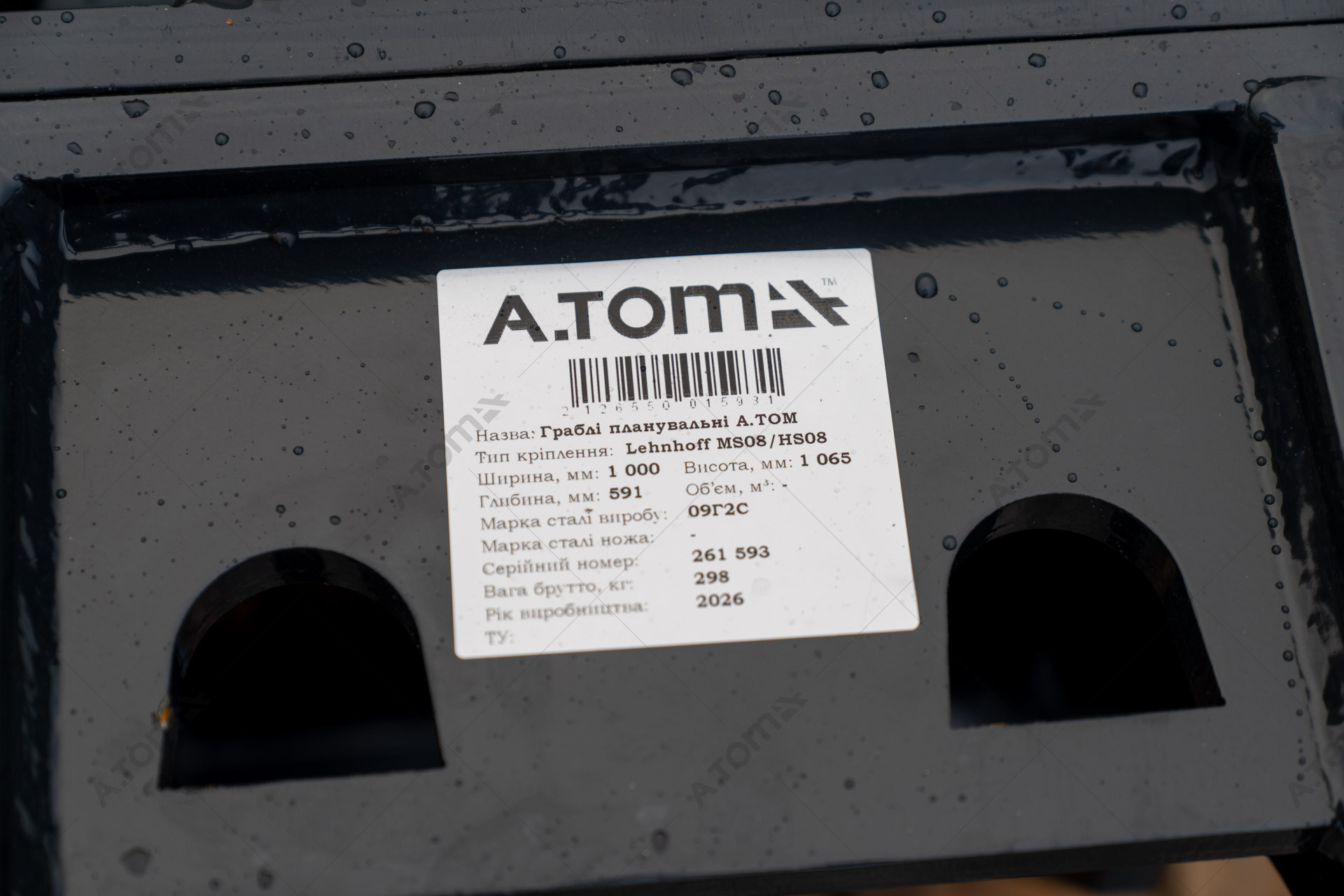

Main characteristics A.TOM 1000 Grading Rake 8–10 t
| Width | 1000 mm |
| Height | 1065 mm |
| Depth | 591 mm |
| Weight | 298 kg |
| Carrier weight | 8-10 t |
| Construction material | S355 steel |
| Working elements | Metal teeth |
