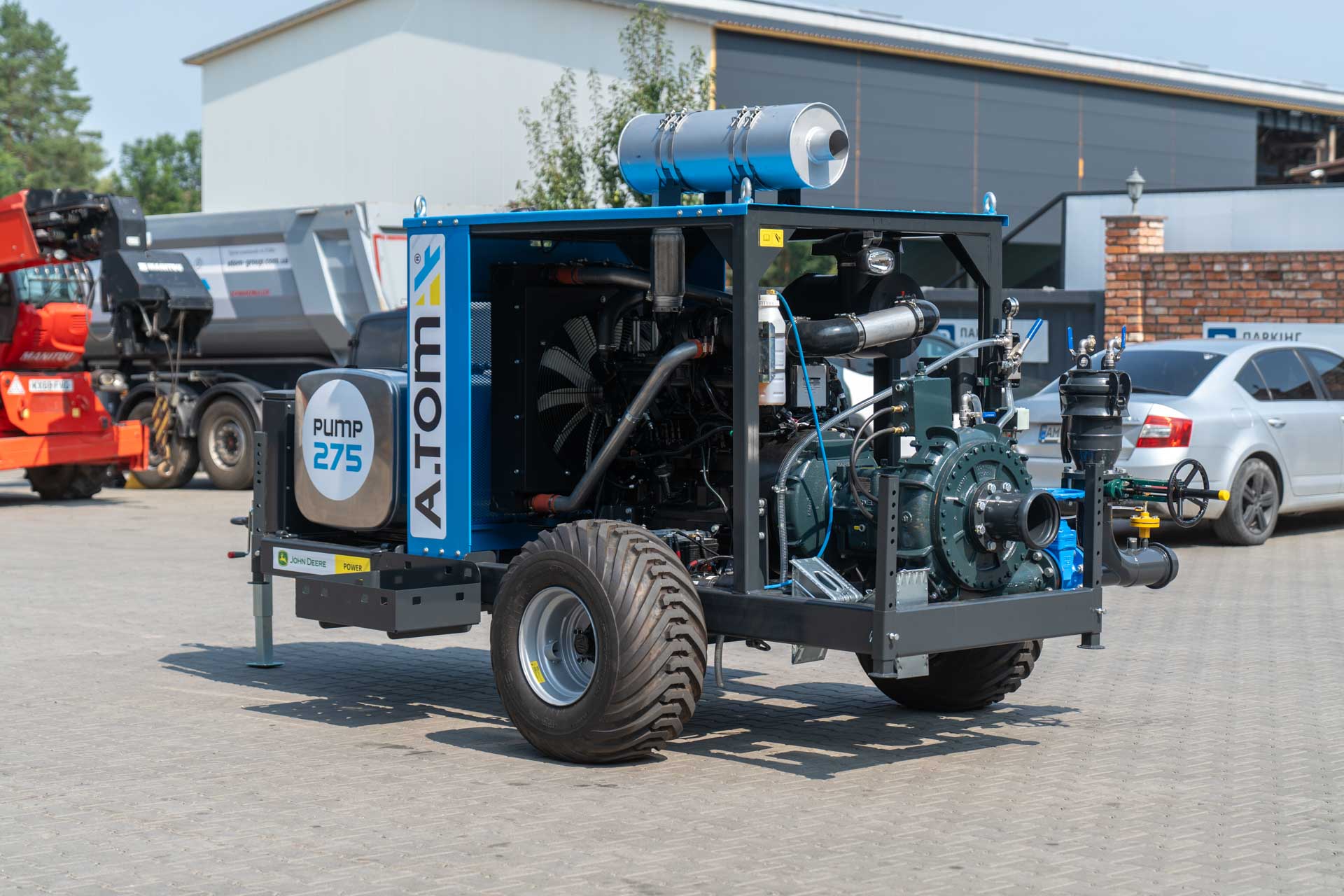

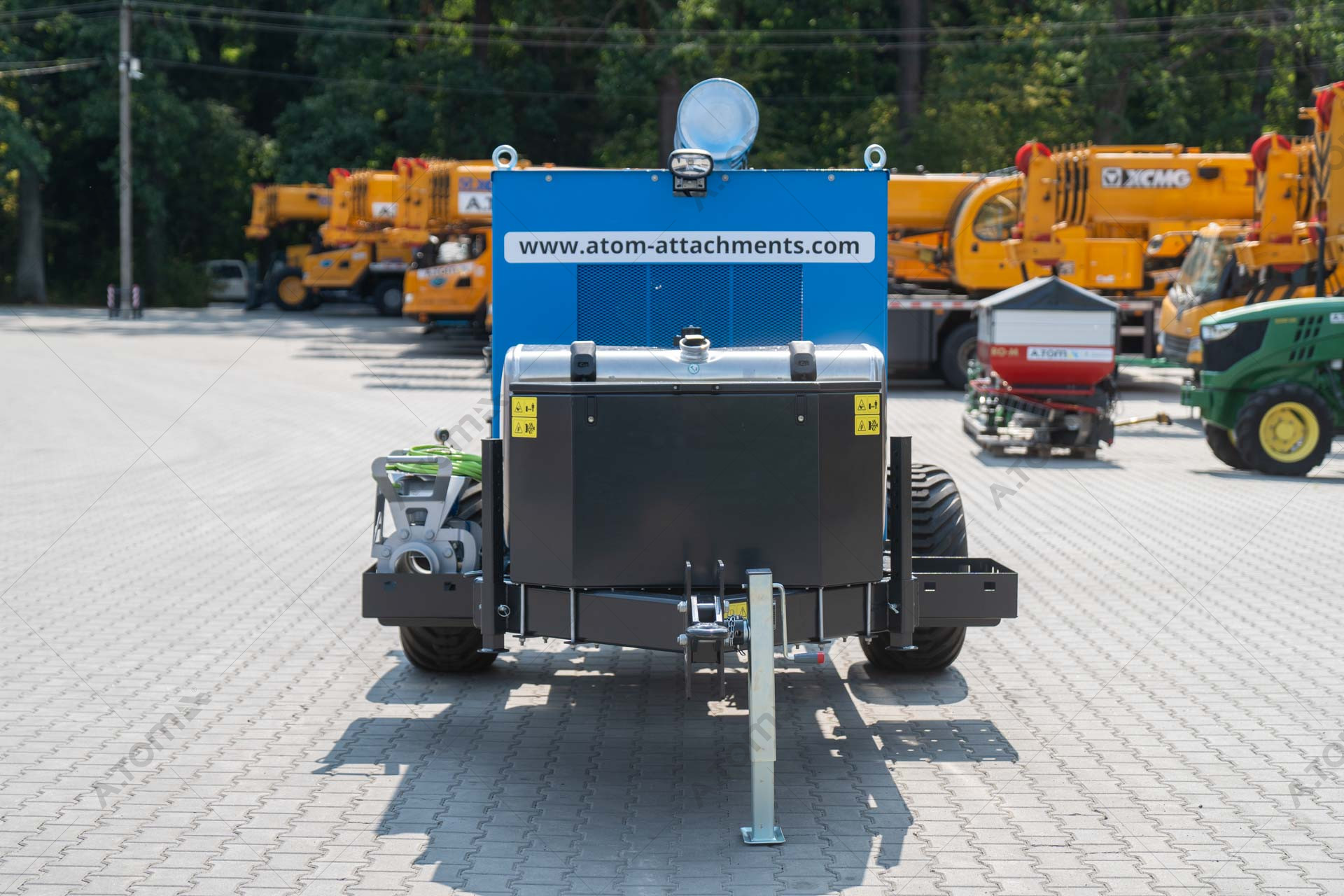

Pump stations A.TOM PUMP 275 equipped with JOHN DEERE 275hp engines and Cornell centrifugal pumps, which allow to achieve increased productivity (up to 350 m³/h) with large flows of high pressure liquid. The productivity of such station is 2,500 to 3,000 m³ per day. A.TOM PUMP 290 stations are designed for pumping of liquid manure, liquid effluents from storage facilities and its subsequent application to the fields as organic fertilizers.

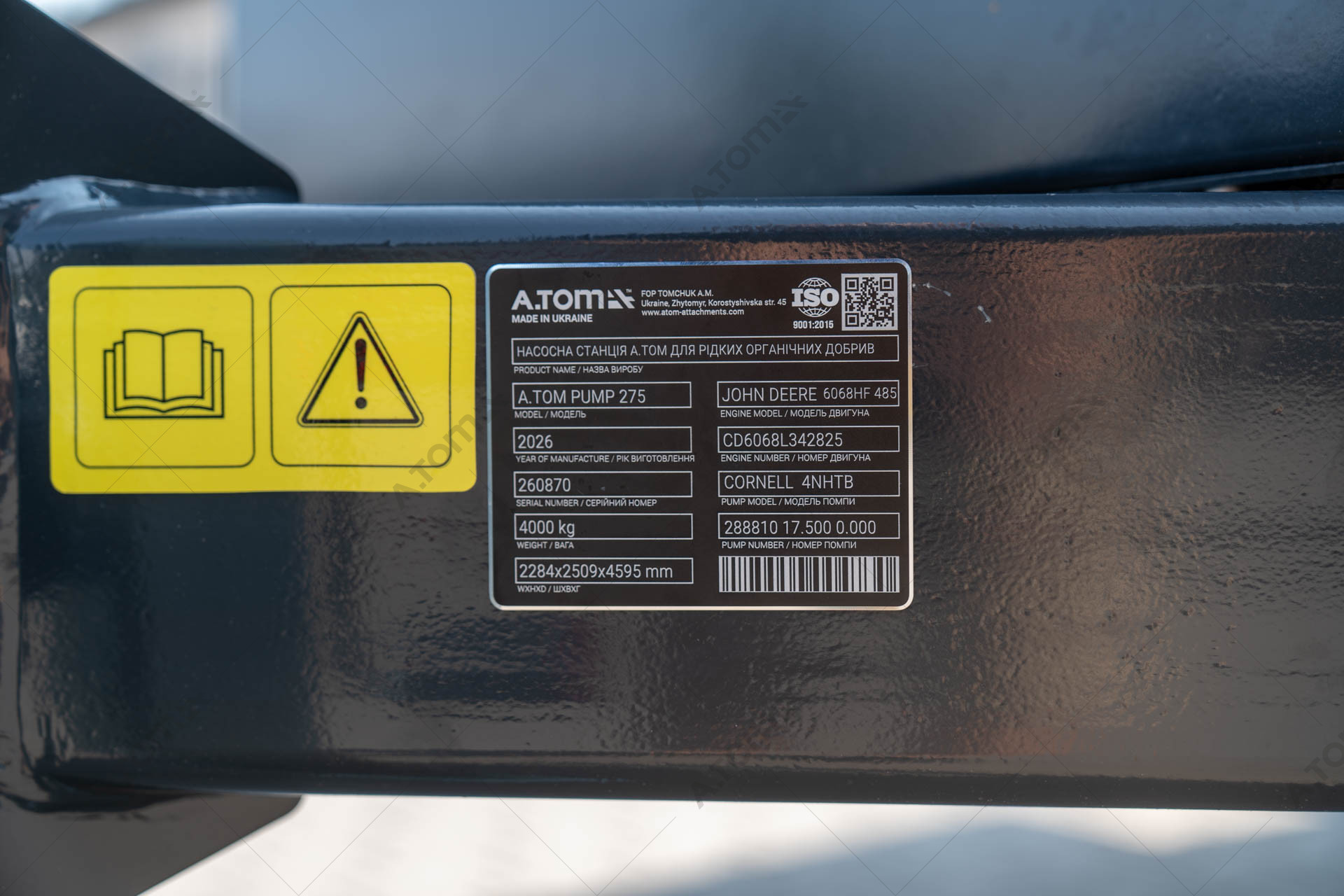

Main characteristics Pump station - A.TOM PUMP 275
| Capacity | up to 350 m3/h | |
| Length | 4,6 m | |
| Height | 2,5 m | |
| Width | 2,3 m | |
| Weight | 4000 kg | |
| Technical features of Cornell 4NHTB pump | ||
| Min. flow | 77.18 m3/h | |
| Max. flow | 454 m3/h | |
| Discharge size | 101.6 mm | |
| Suction pipe size | 127 mm | |
| Solids handling | 7.62 cm | |
| Max. speed | 2000 rpm | |
| Shut-off head | 143.3 m | |
| BEP head | 119.8 m | |
| BEP flow | 422.901 m3/h | |
| BEP percent | 70% | |
| Technical features of JD6068 HF485 engine | ||
| Power | 275 (205 kW) / 2400 / rpm | |
| Max. torque | 1025 N.m. | |
| Engine type | 6-cylinders in-line 4-stroke diesel engine | |
| Number of cylinders | 6 pcs. | |
| Engine capacity | 6.8 l | |
| Fuel type | Diesel | |
| Oil tank capacity | 19.5 l | |
| Environment class | Calibrated to meet EPA Tier 3 / Stage III A | |
More information

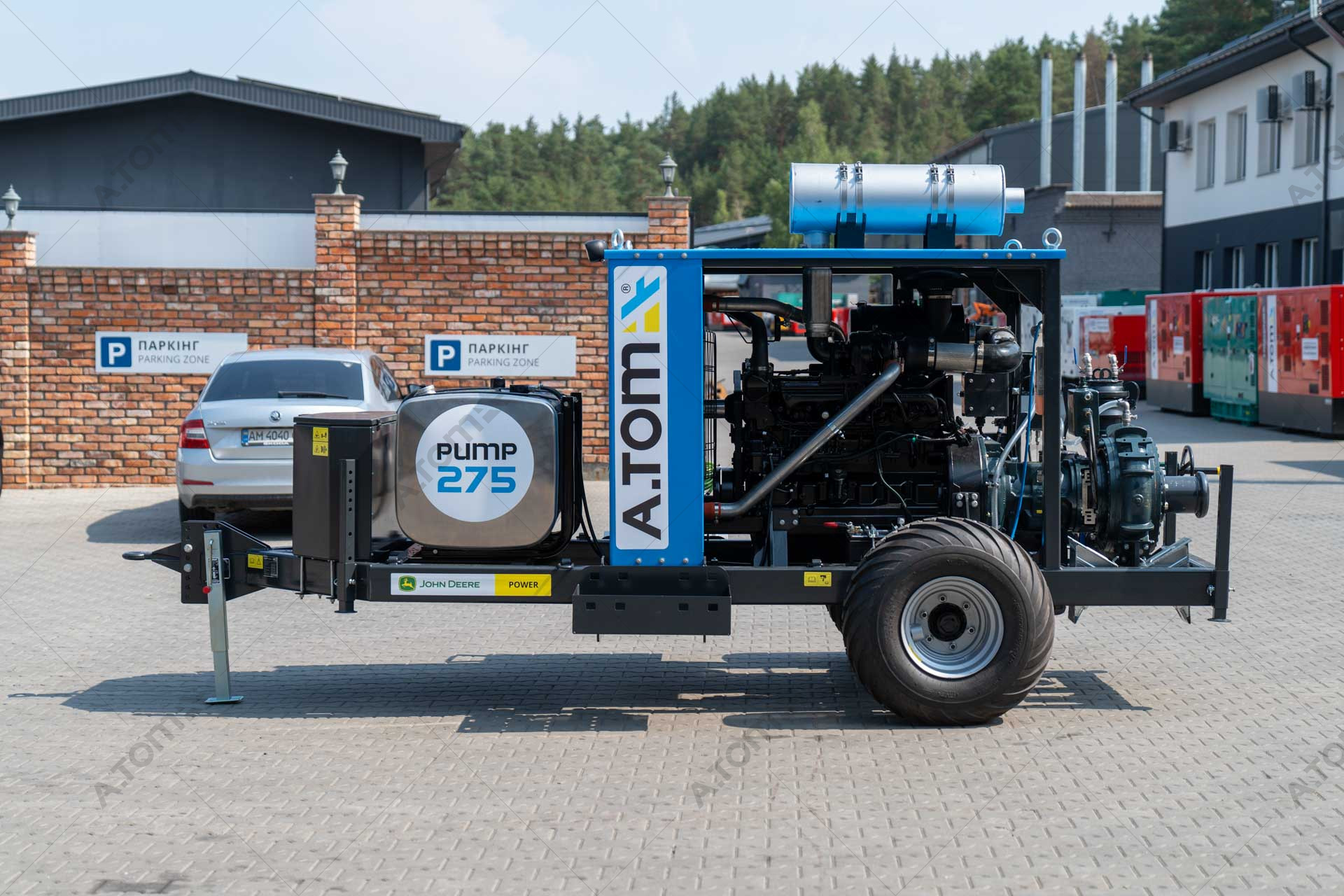

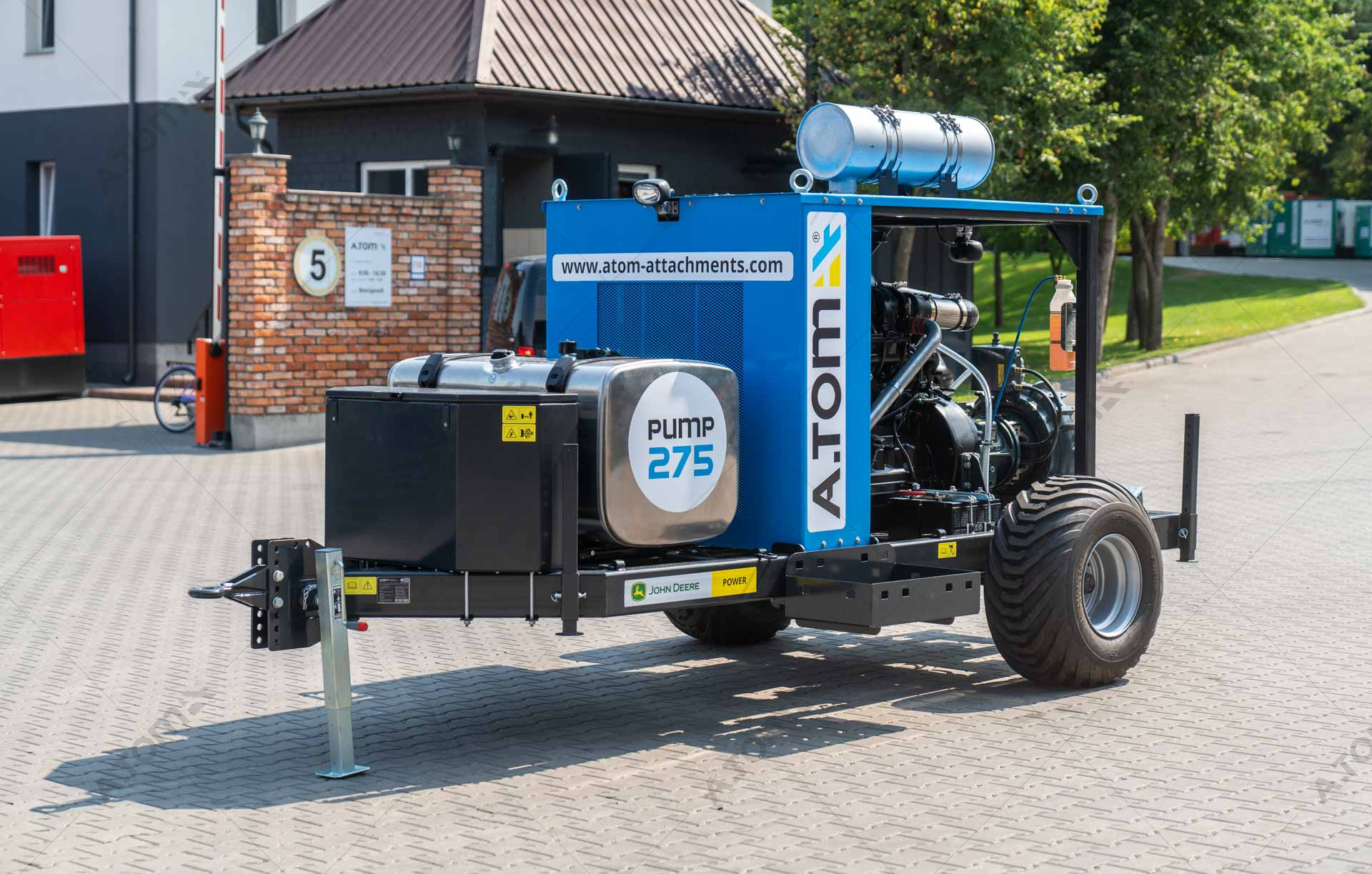

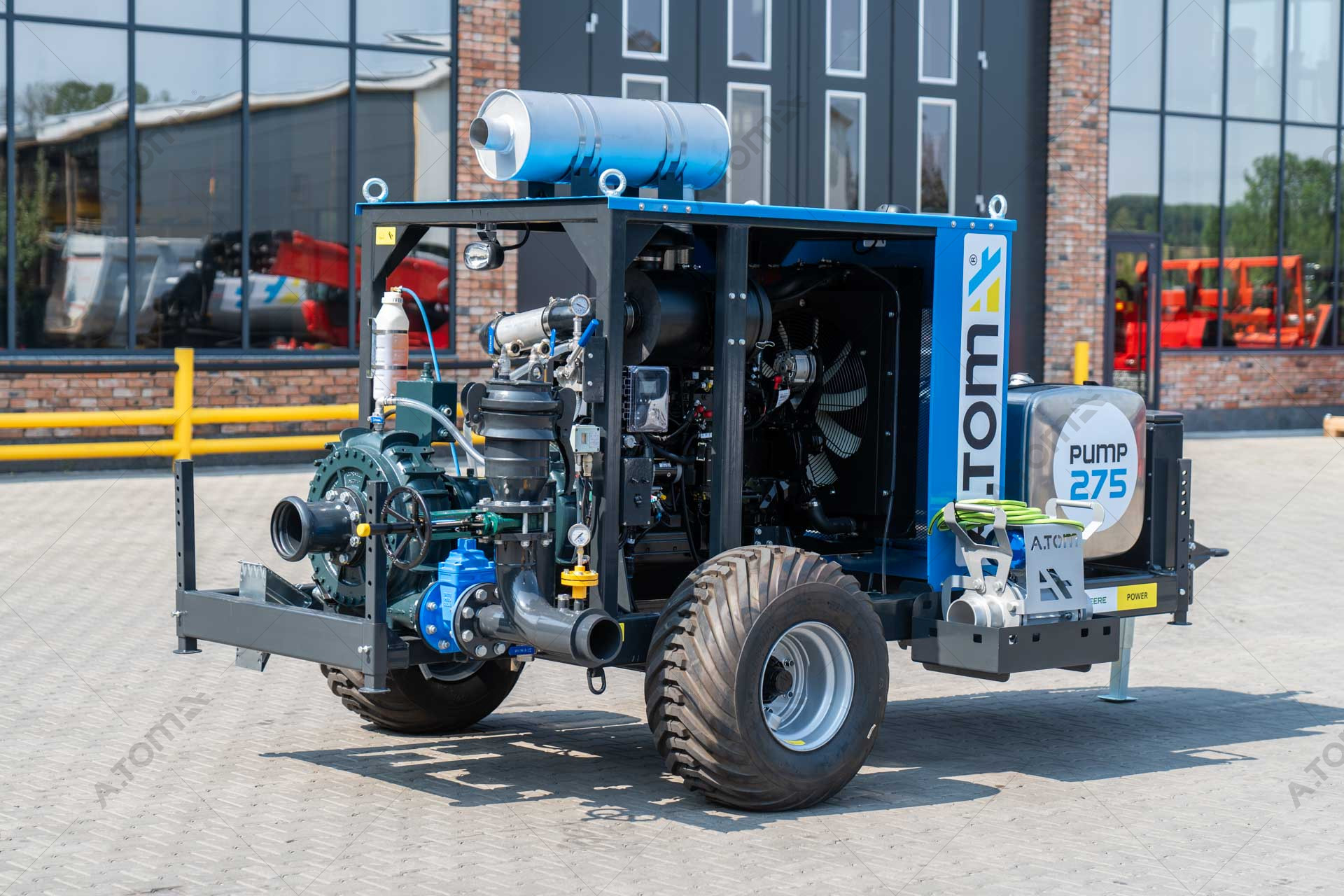

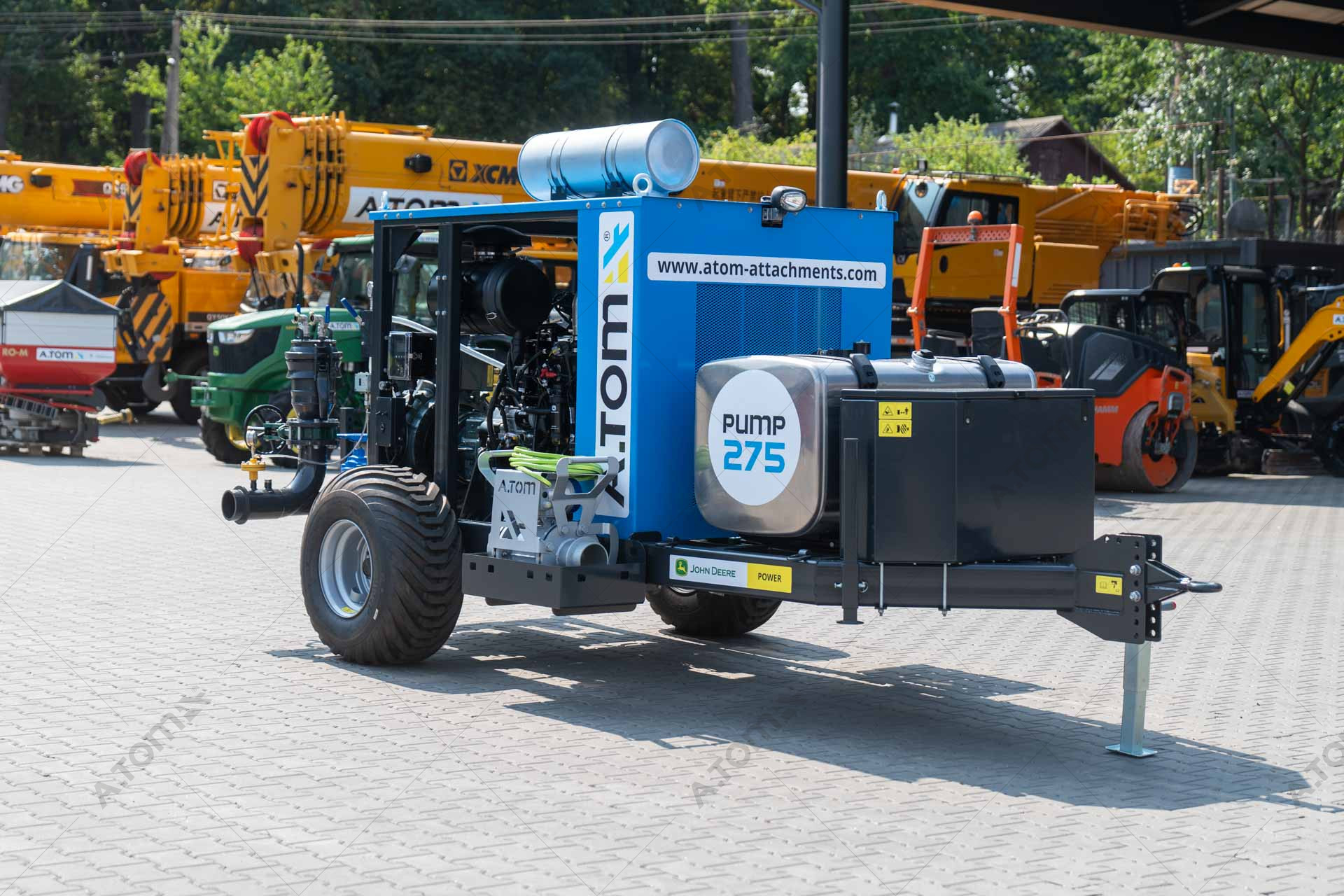

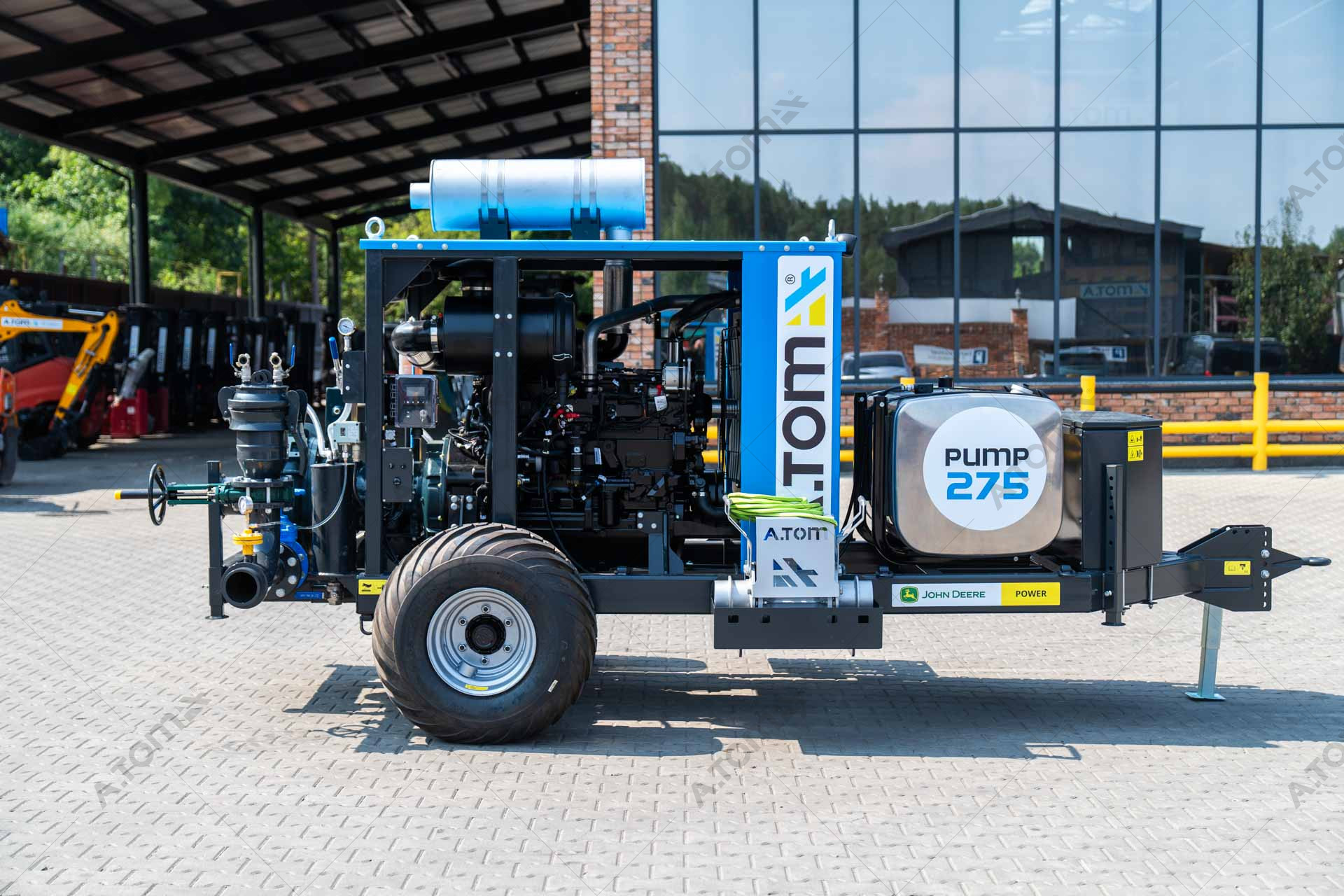

An example of a complete set of pump-diesel station A.TOM PUMP 275:
- Cornell Pump 4NHTB-EM18DBK
- JD6068 HF485 diesel engine (275 (205 kW) / 2400 / rpm)

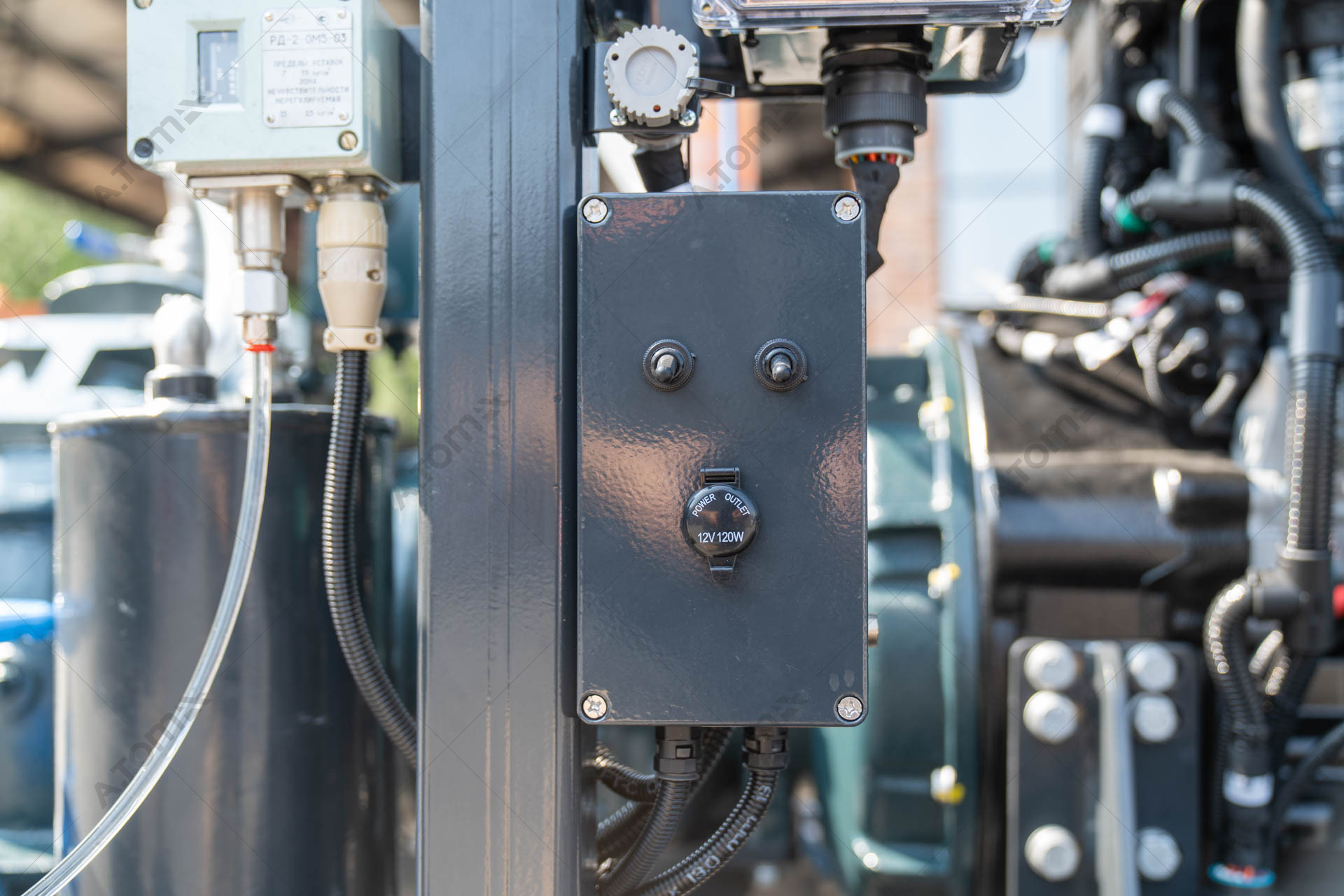

- Control Panel
- Silencer
- Battery (12 V) – 2 pc.
- Fuel tank with a standard volume - 560 l
- Generator
- Extra-large radiator
- Fan with increased performance
- Fuel filters
- Single axis chassis
- Reinforced support frame.
- Reinforced large-sized wheels, which reduces the consequences of towing in off-road conditions.
Systems and sensors:
- Pressure switch at the pump outlet
- Emergency oil pressure switch
- Emergency coolant temperature sensor
- Analog coolant temperature gauge sensor
- Pressure gauge with divider at the pump outlet
Characteristics of Cornell 4NHTB centrifugal pump:
- Bauer 5" input (127 mm), 4" output (101.6 mm)
- Vacuum system - electric vacuum pump 12 (24) V
- Permissible size of inclusions – 76 mm
- Consumption – 50-400 m3 / h
- Height of lift – 60-140 m
- Cornell's Run-Dry ™ System – for dry-running operation of the pump with lubricant in the mechanical seal area
- CYCLOSEAL® Technology – Prevents intrusion of foreign particles
1. Durability and reliability
The body of the pump-diesel station is made of high-quality S355 J2 structural steel and has a powder polymer coating, which is resistant to different factors in an aggressive environment.
2. "ADR"/"TVZ" axis (Italy)

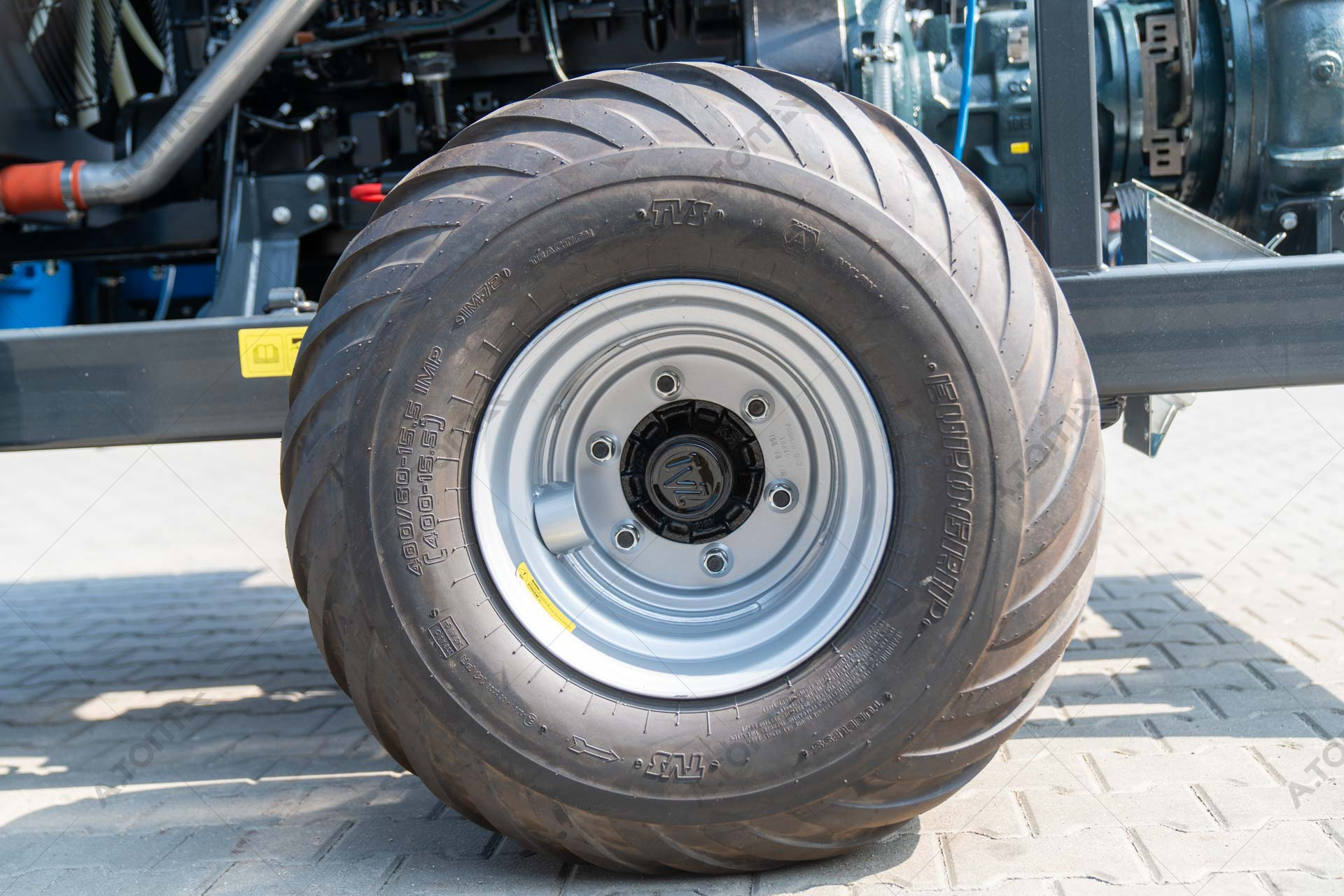

Axles of the Italian manufacturer "ADR"/"TVZ" are tested by intensive operation and guarantee stability and ability to move the pump diesel station in off-road conditions. A.TOM PUMP 275 pump-diesel station has transport wheels for moving between manure storage facilities, as well as between farms. For reliability of transportation, the equipment has reinforced hubs and large wheels.
3. Mounting loops
Mounting loops in the station body are designed for safe and easy loading and unloading with the help of cranes.
4. Stabilizing legs
Metal stabilizing legs could be lowered and raised. In the unfolded state, they are fixed with a lock pin in a vertical position. They provide raising the station and fixing it at a certain height, as well as fixing it in a safe position during the operation.

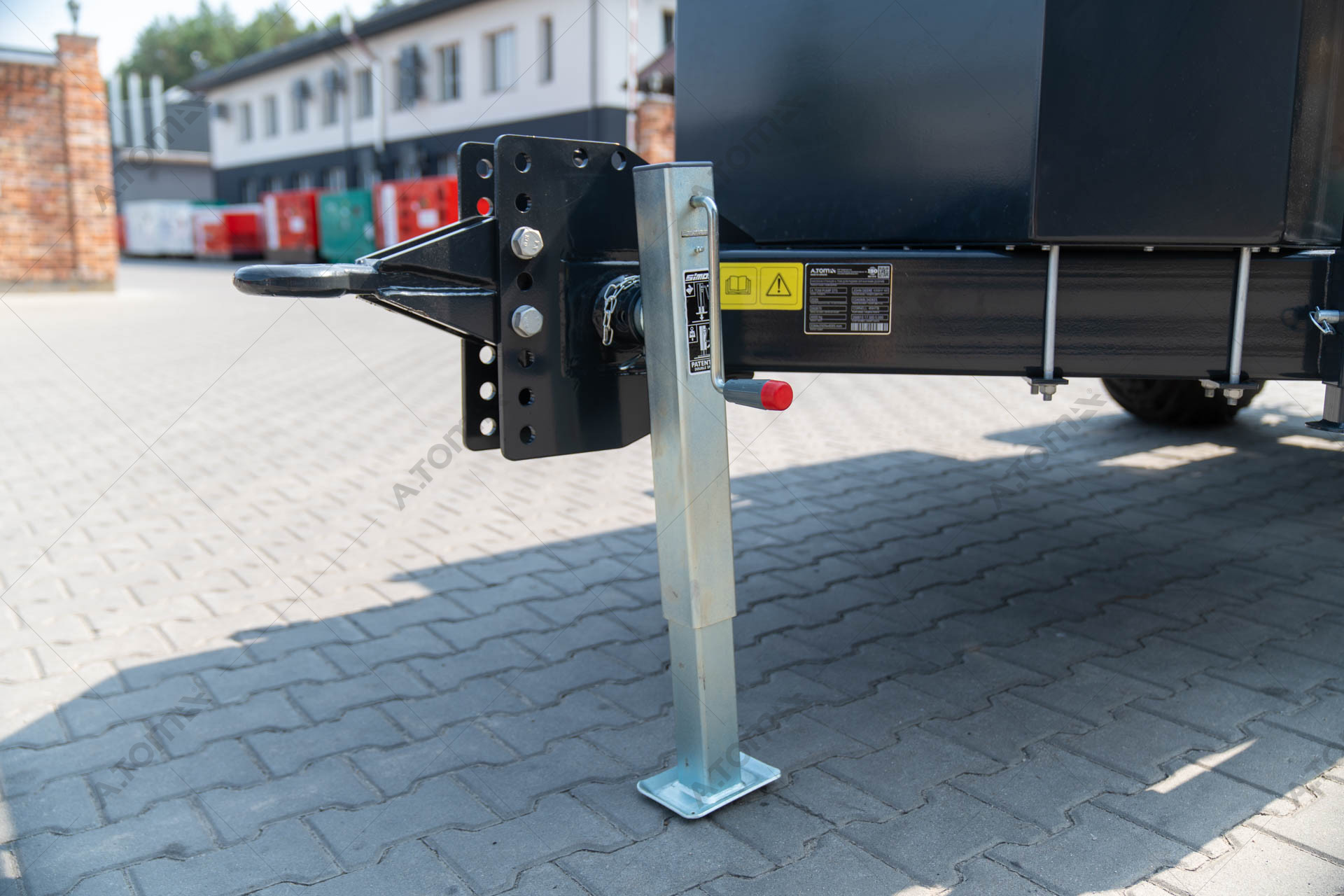

5. "Simol" Jack (Italy)
The reliable and durable Italian-made jack is designed for the convenient and safe operation of the station. Together with the legs, it is used to raise and fix the station at a certain height for connection to the tractor, as well as to fix the equipment after the work is completed.
6. Tool box
In the front frame of the station, there is a convenient box for tools and spare parts.

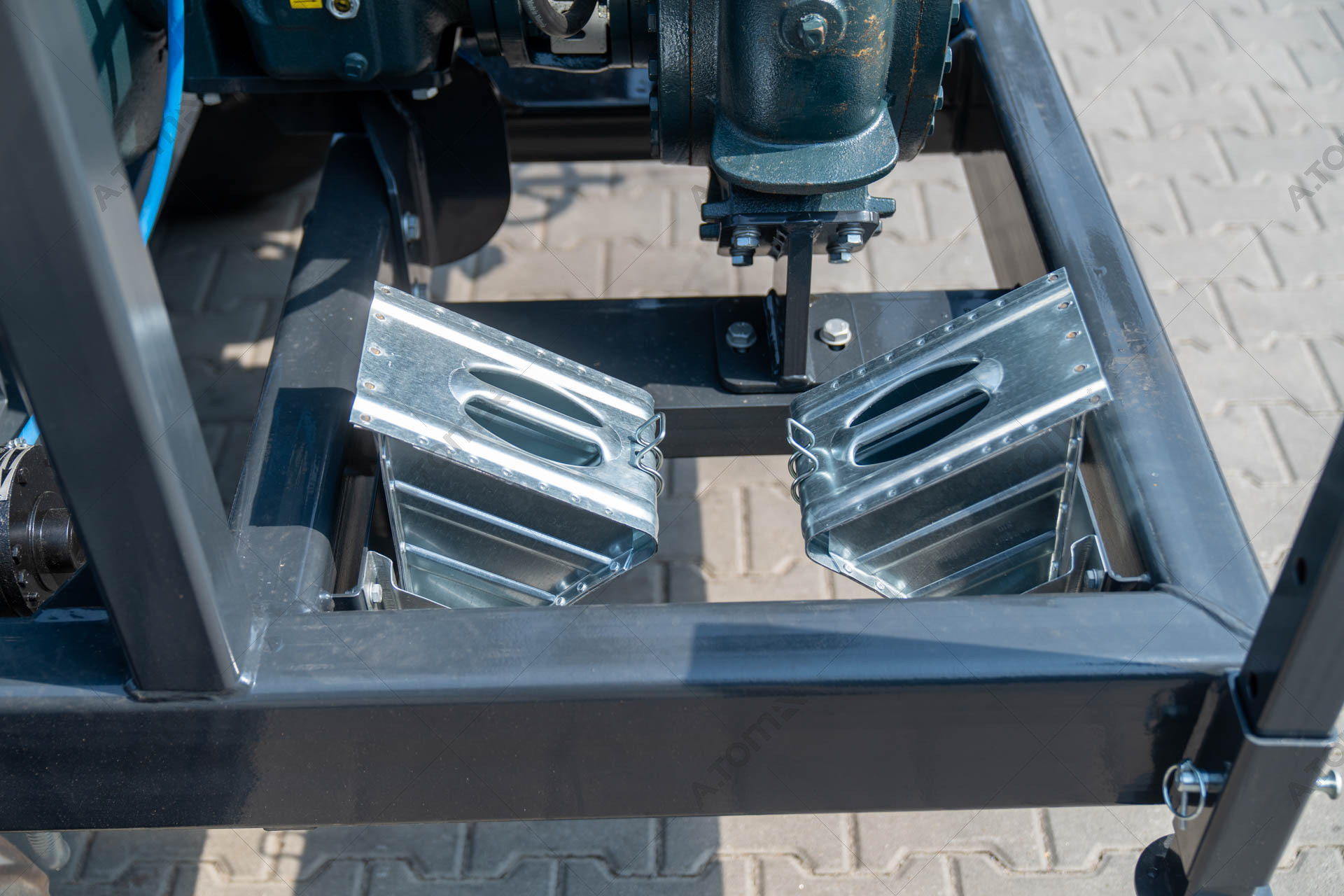

7. Trays

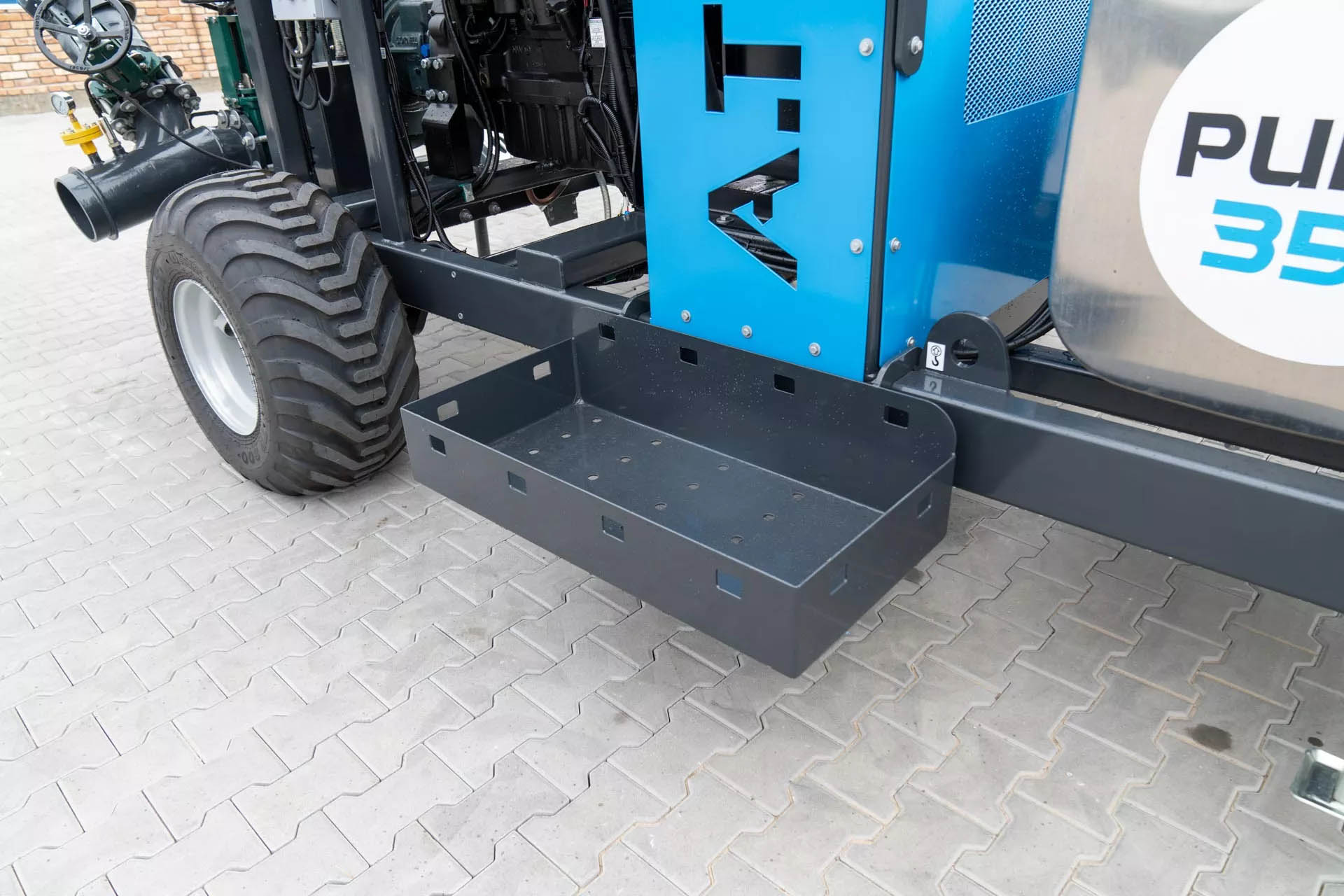

Two trays are conveniently located on the left and right sides at the bottom of the station frame; one can be used to hold and transport a heavy flow meter, while the other is for additional fittings or tools.

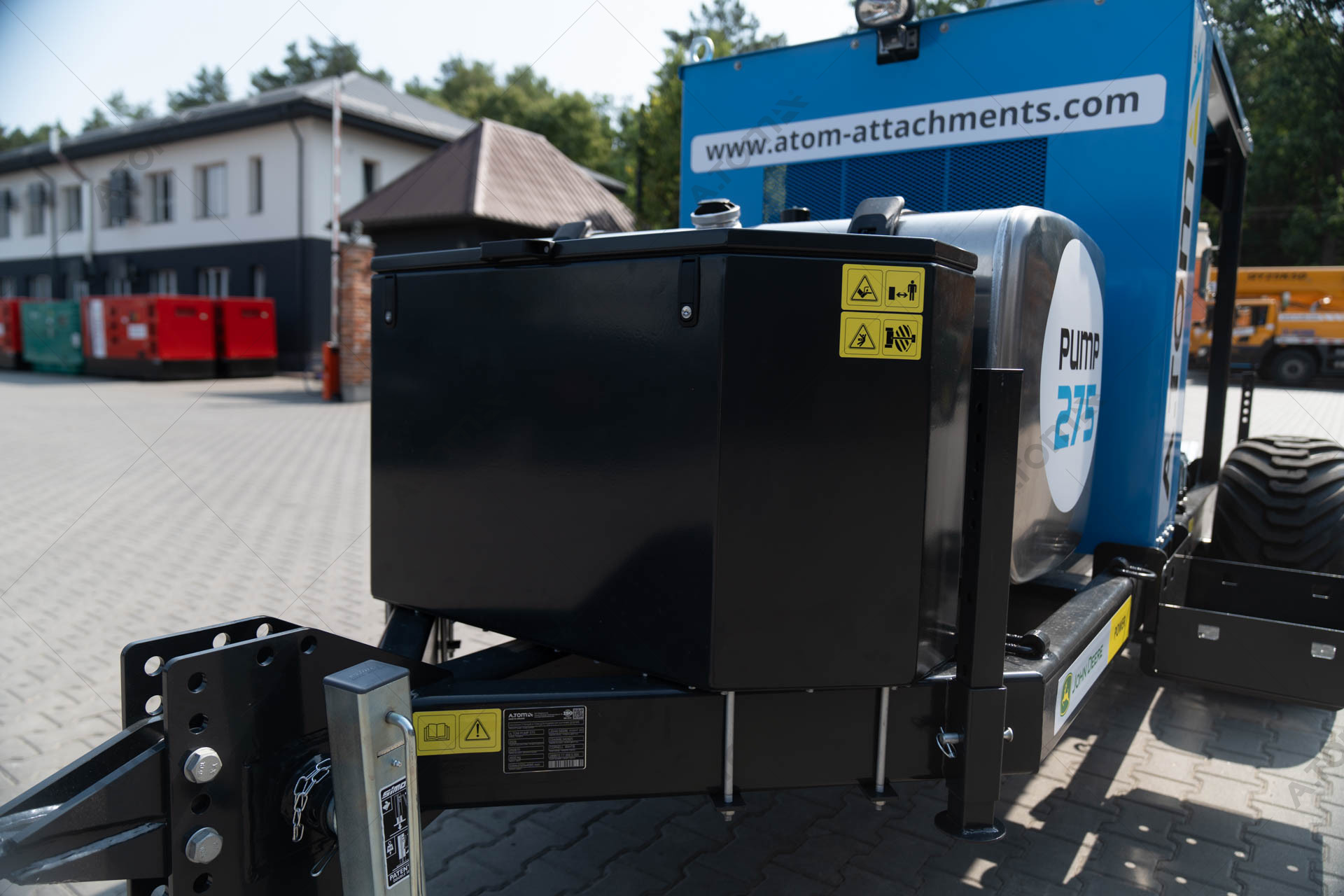

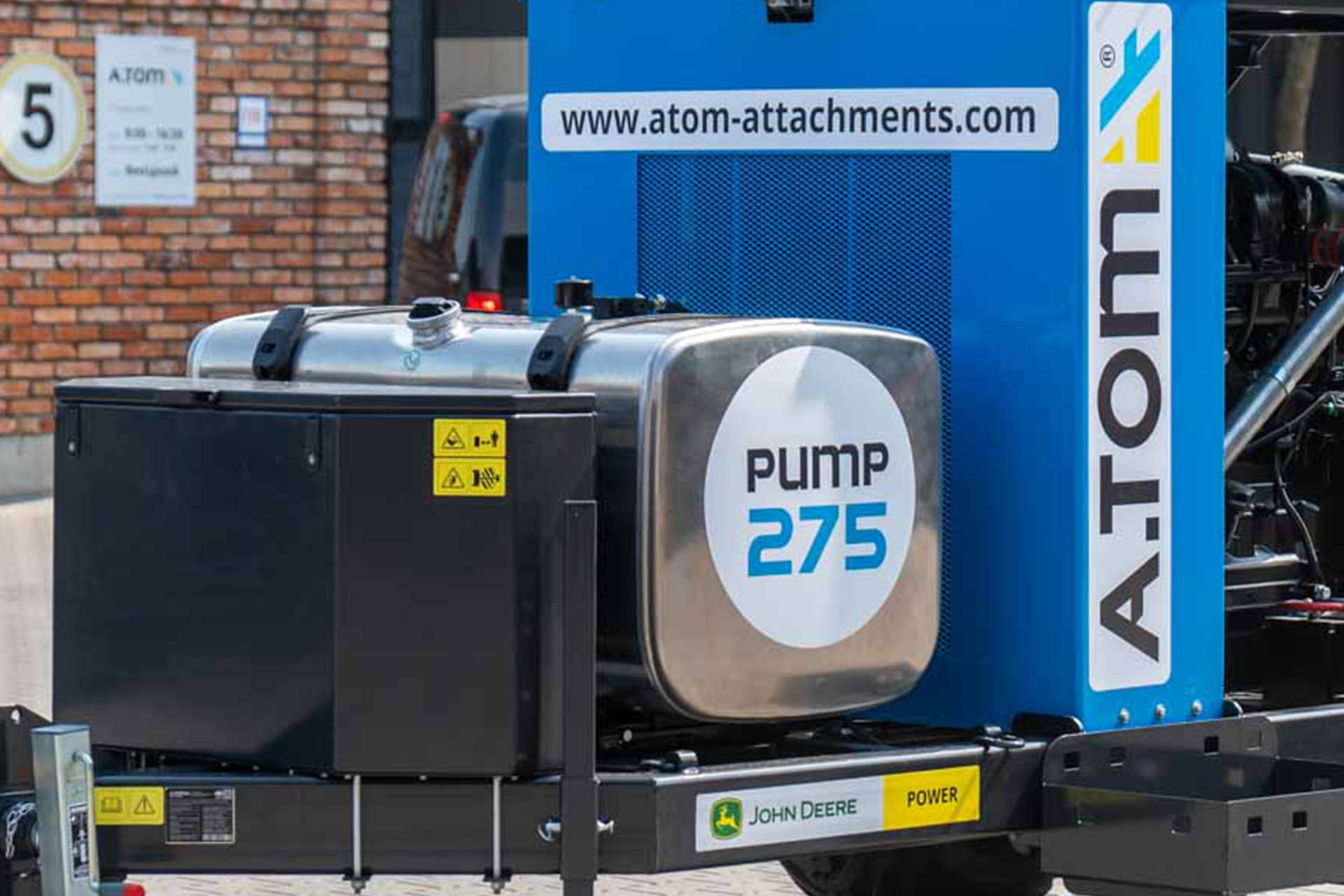

8. Fuel tank (Turkey)
A fuel tank made of galvanized steel with a standard volume of 560 liters from the Turkish manufacturer.
9. "Iveco" muffler (Italy)

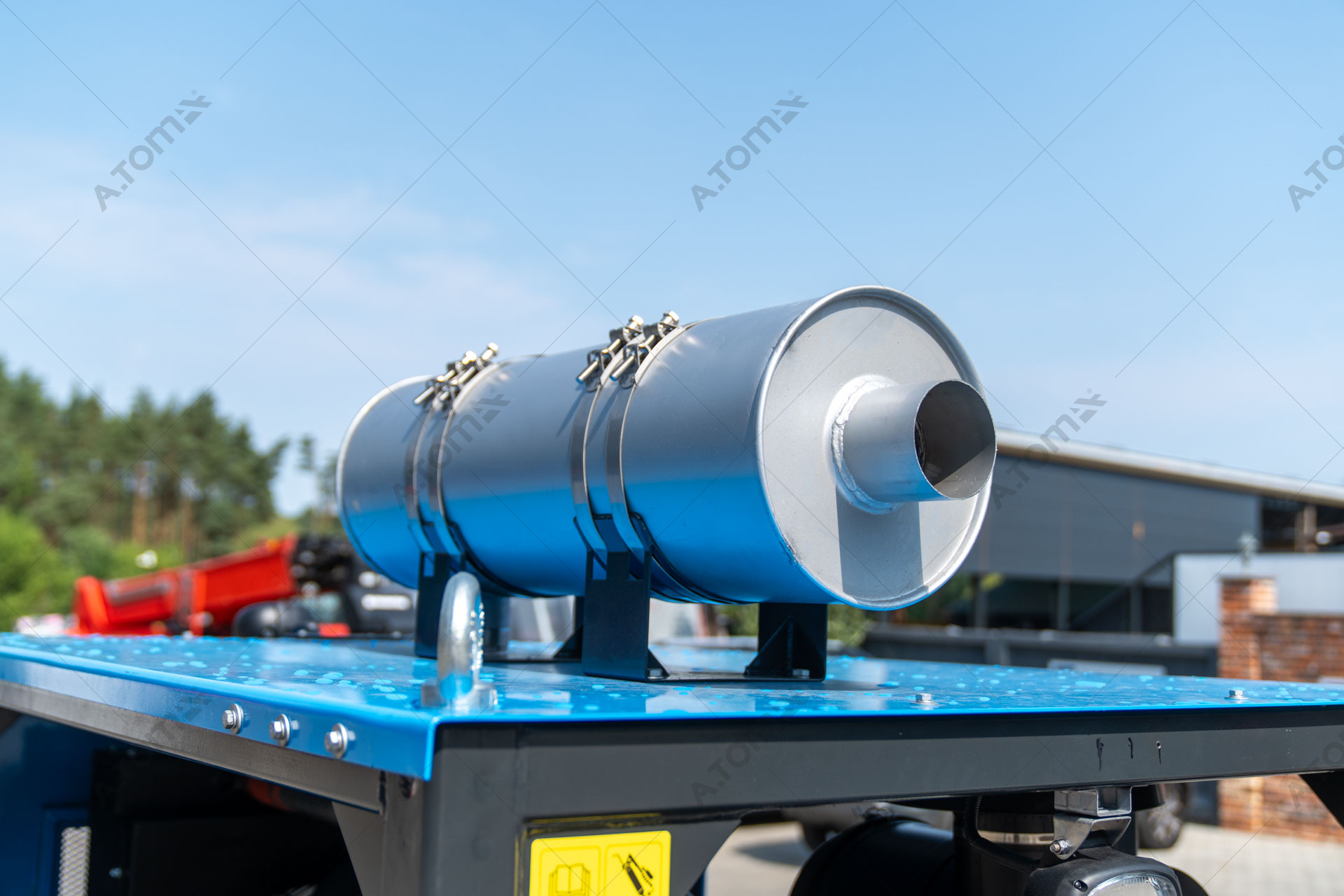

In the upper part of the station, there is a galvanized muffler of Italian production.
10. Lighting equipment

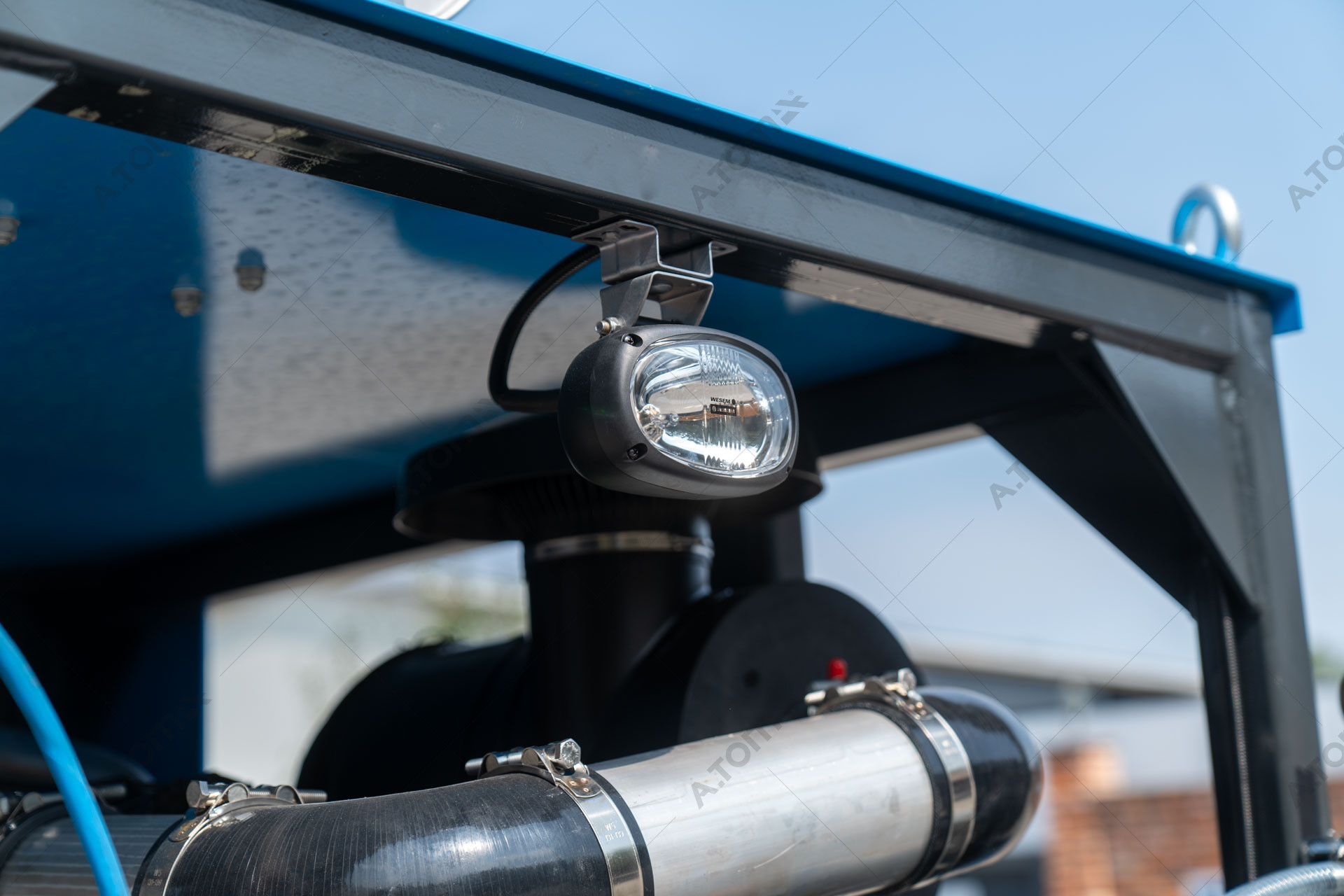

On the roof of the station, there are two headlights on telescopic racks for the convenient work at the nighttime.
.jpg)

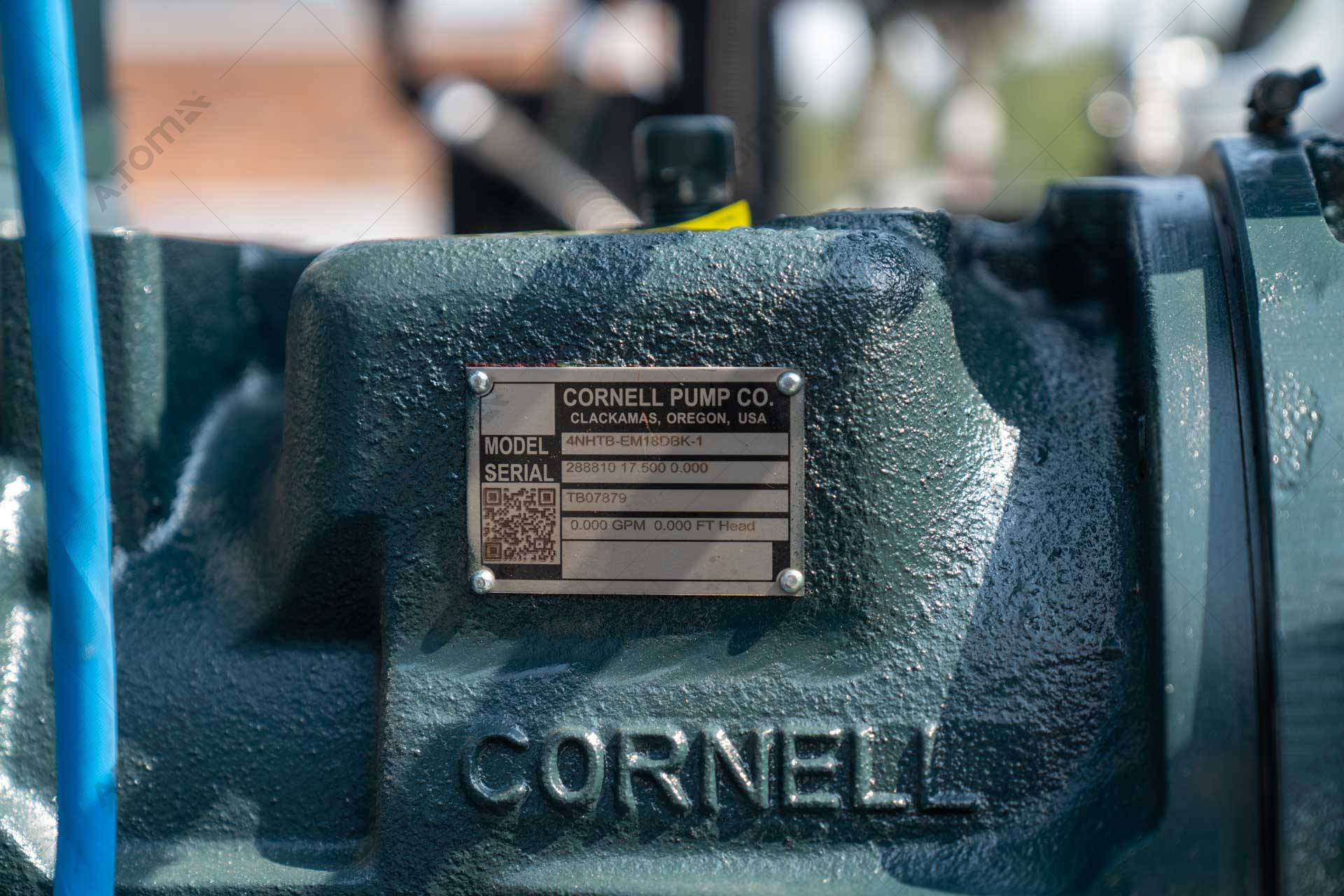

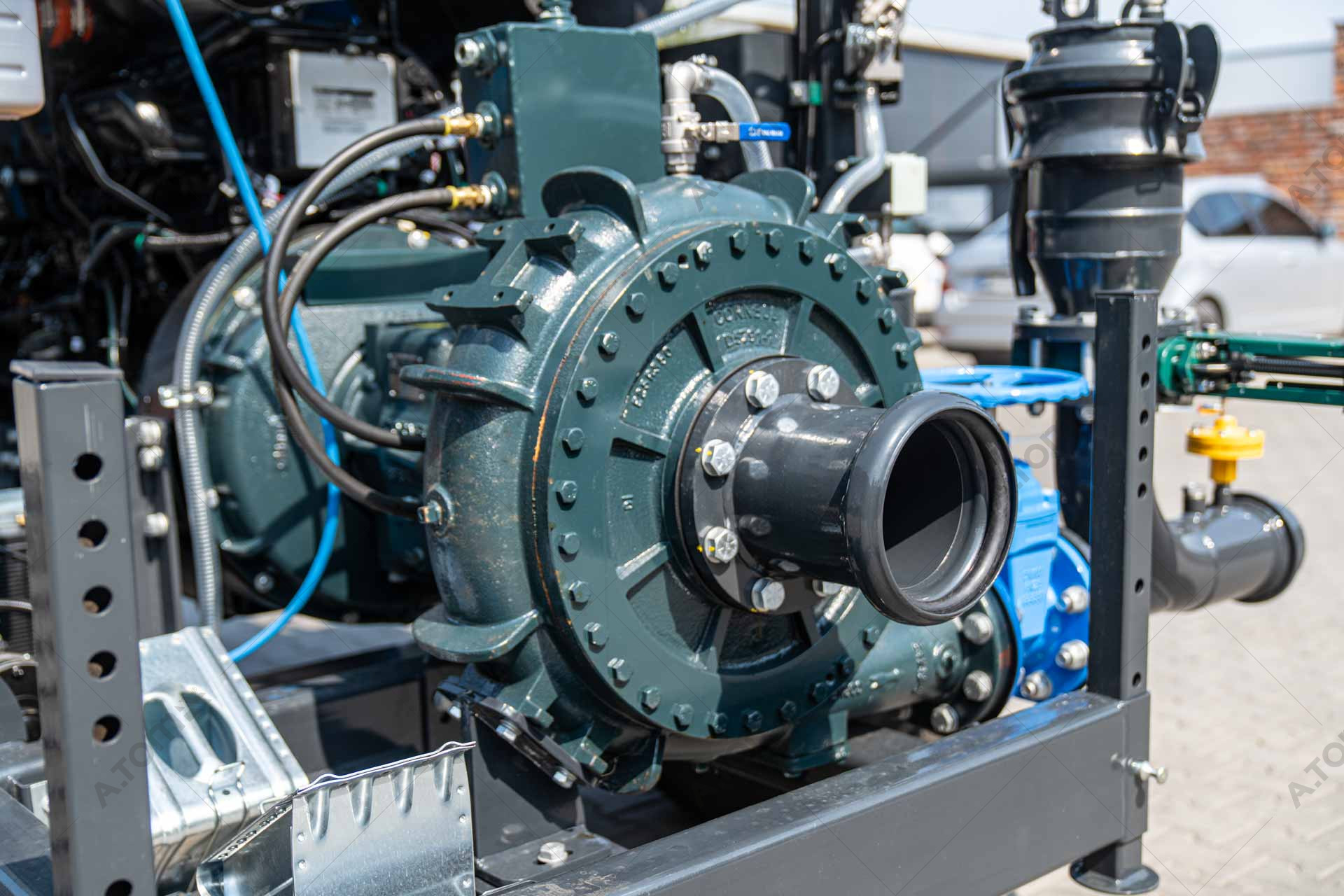

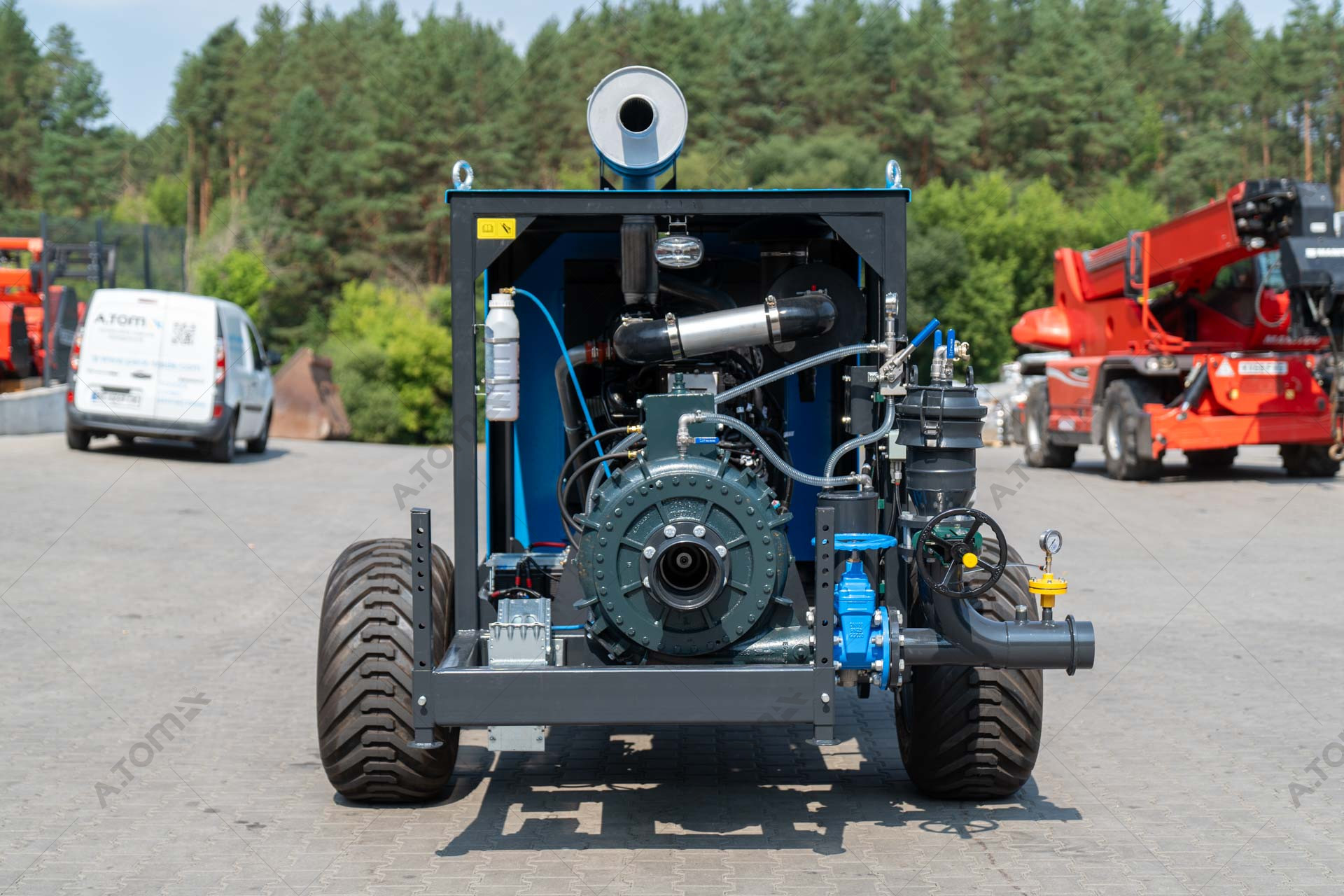

11. "Cornell" pump (USA)

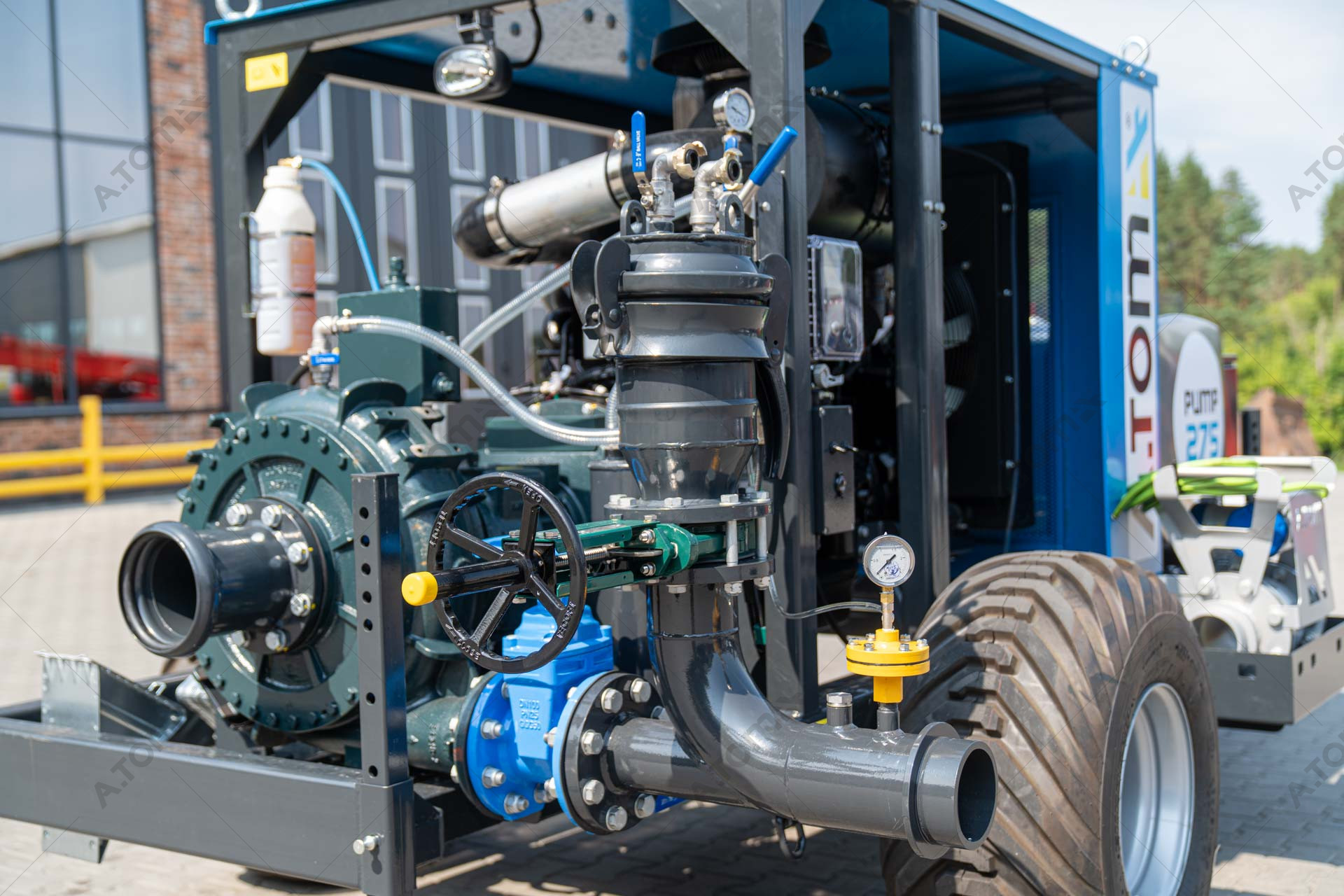

Heavy-duty liquid manure pumps from the American manufacturer Cornell Pumps Company are made of high-quality steel and have solid mechanical end seals for working in abrasive environments. The pumps are equipped with the Run-Dry™ system — for operation in dry mode, as well as the patented CYCLOSEAL® technology, which protects the end seal from foreign particles.

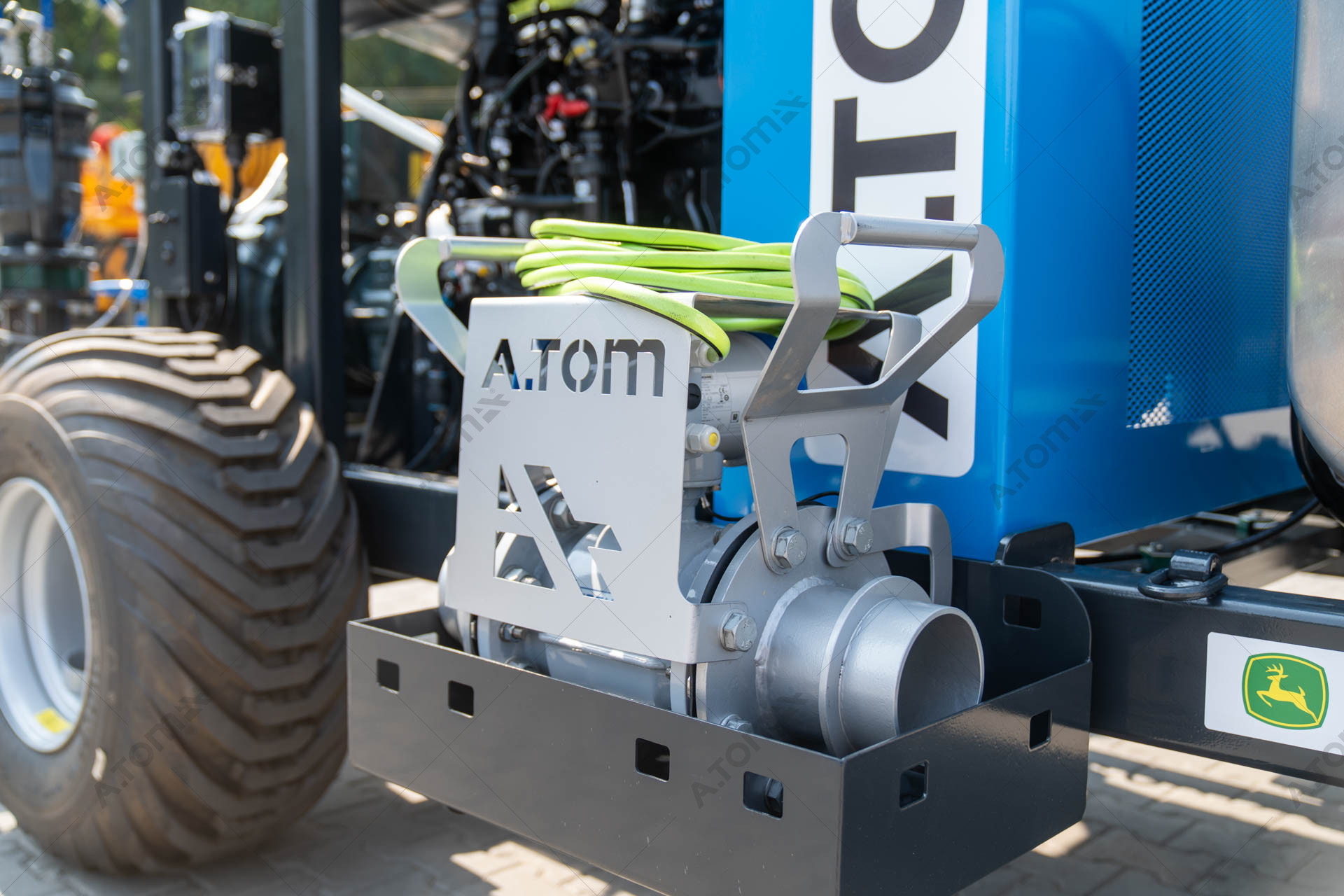

12. Hose blowing fitting
It is used for cleaning hoses by means of a blowing ball which is placed directly into the blowing fitting. Its main advantage is that after the end of the pumping process it is not necessary to disconnect the hose from the station in order to purge the main hose and therefore no slurry is discharged from the hose.
13. Expansion tank
At startup of the station the pump is primed with the oil in the expansion tank, the oil seals are temporarily lubricated until the manure or other pumped liquid reaches the pump.

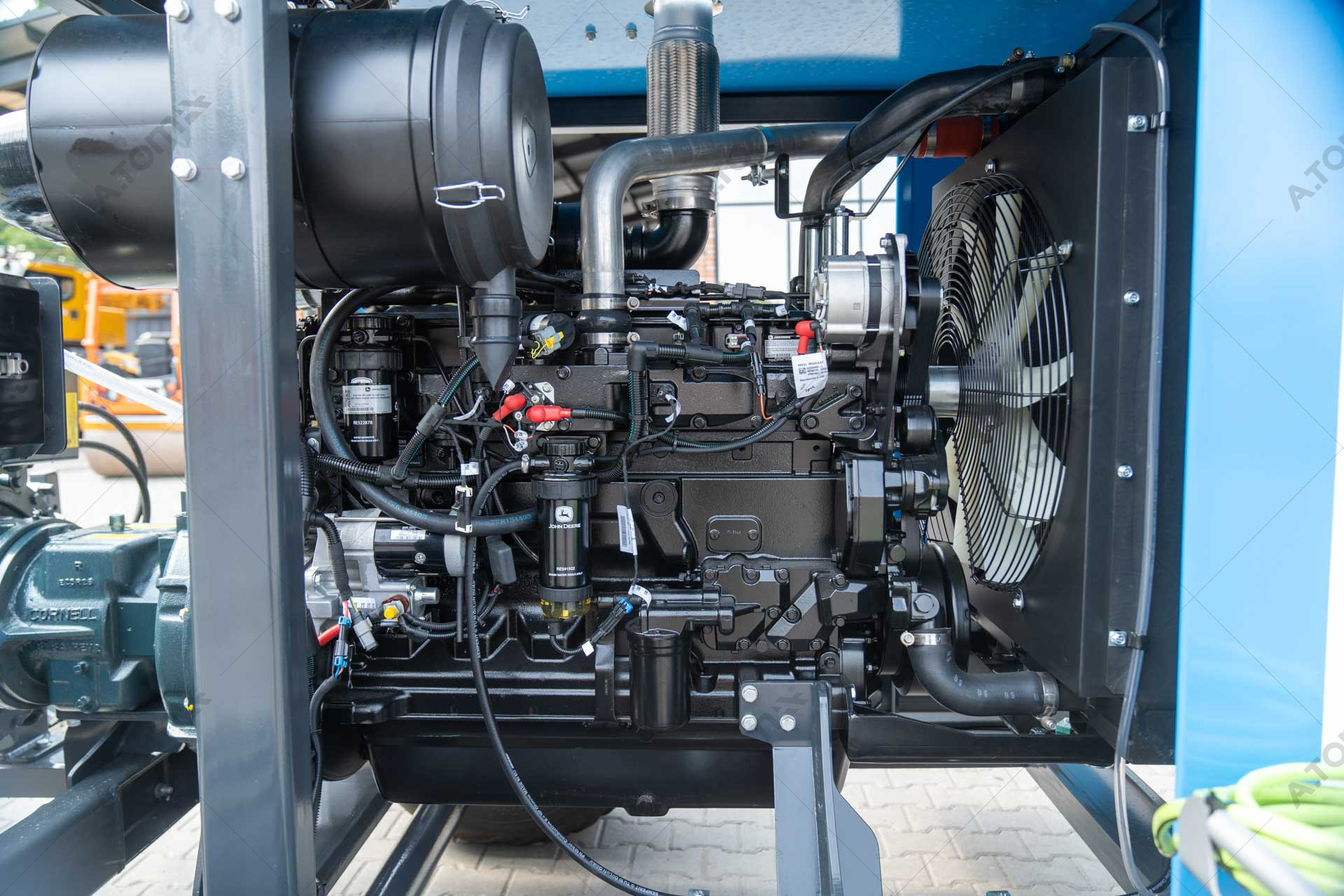

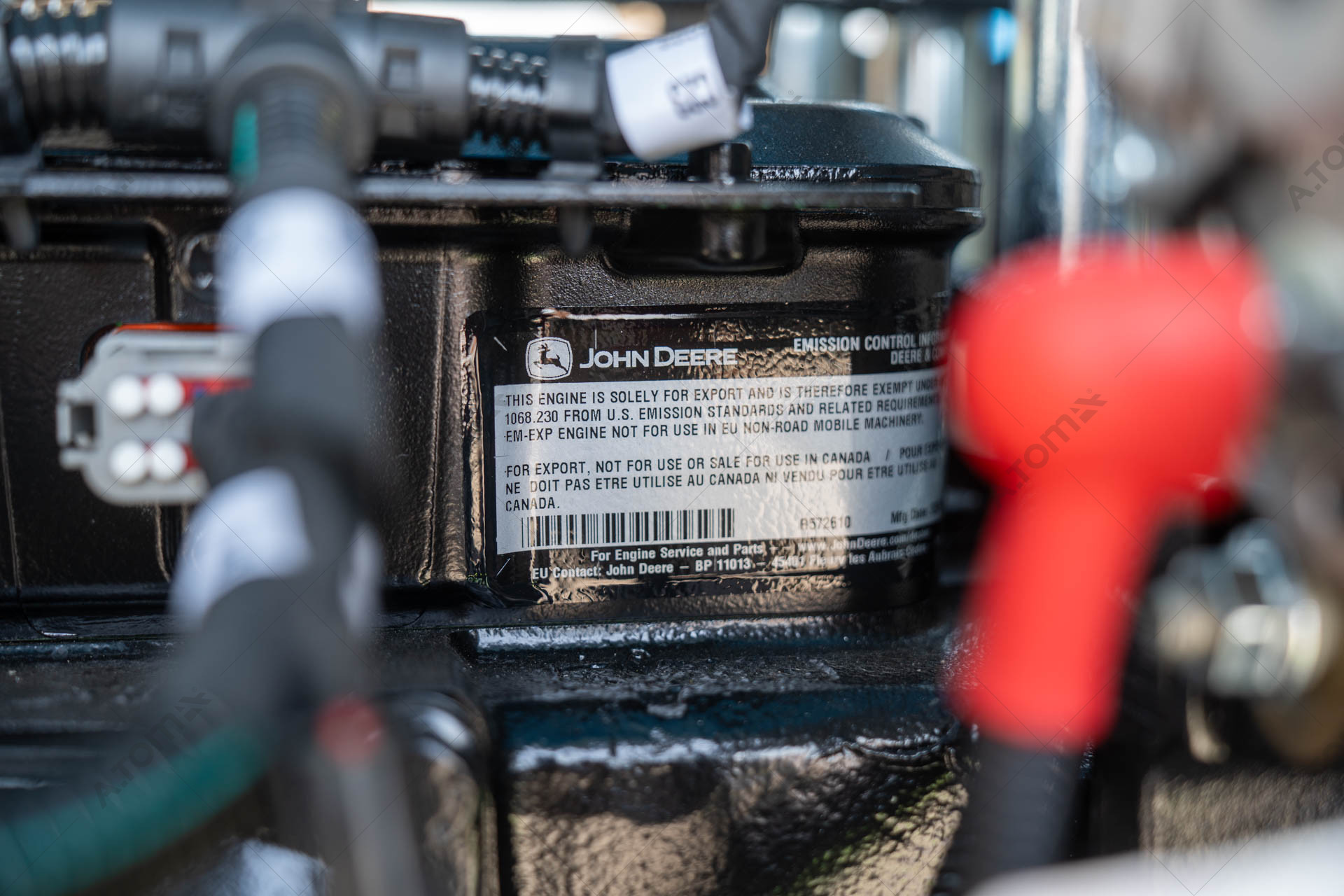

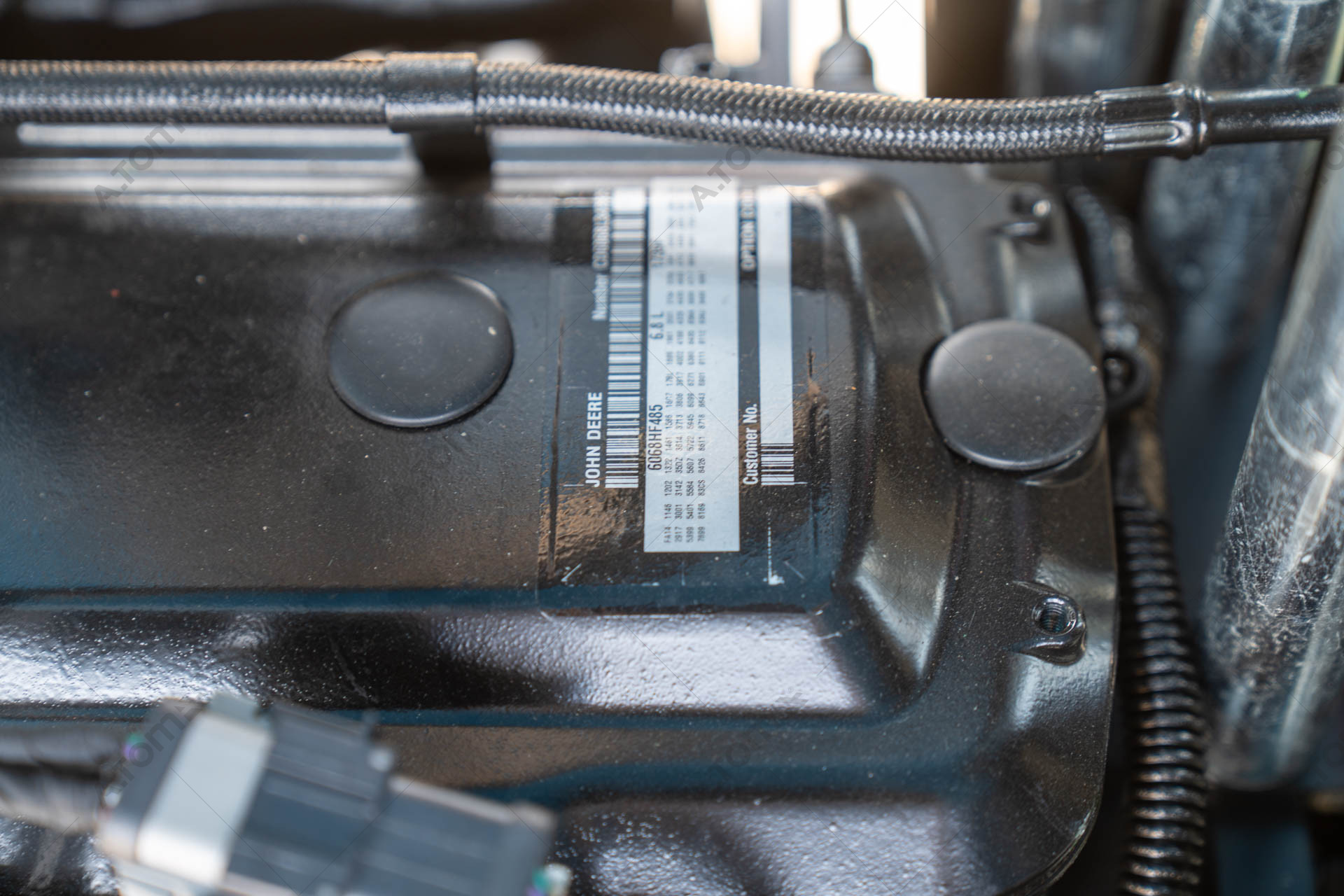

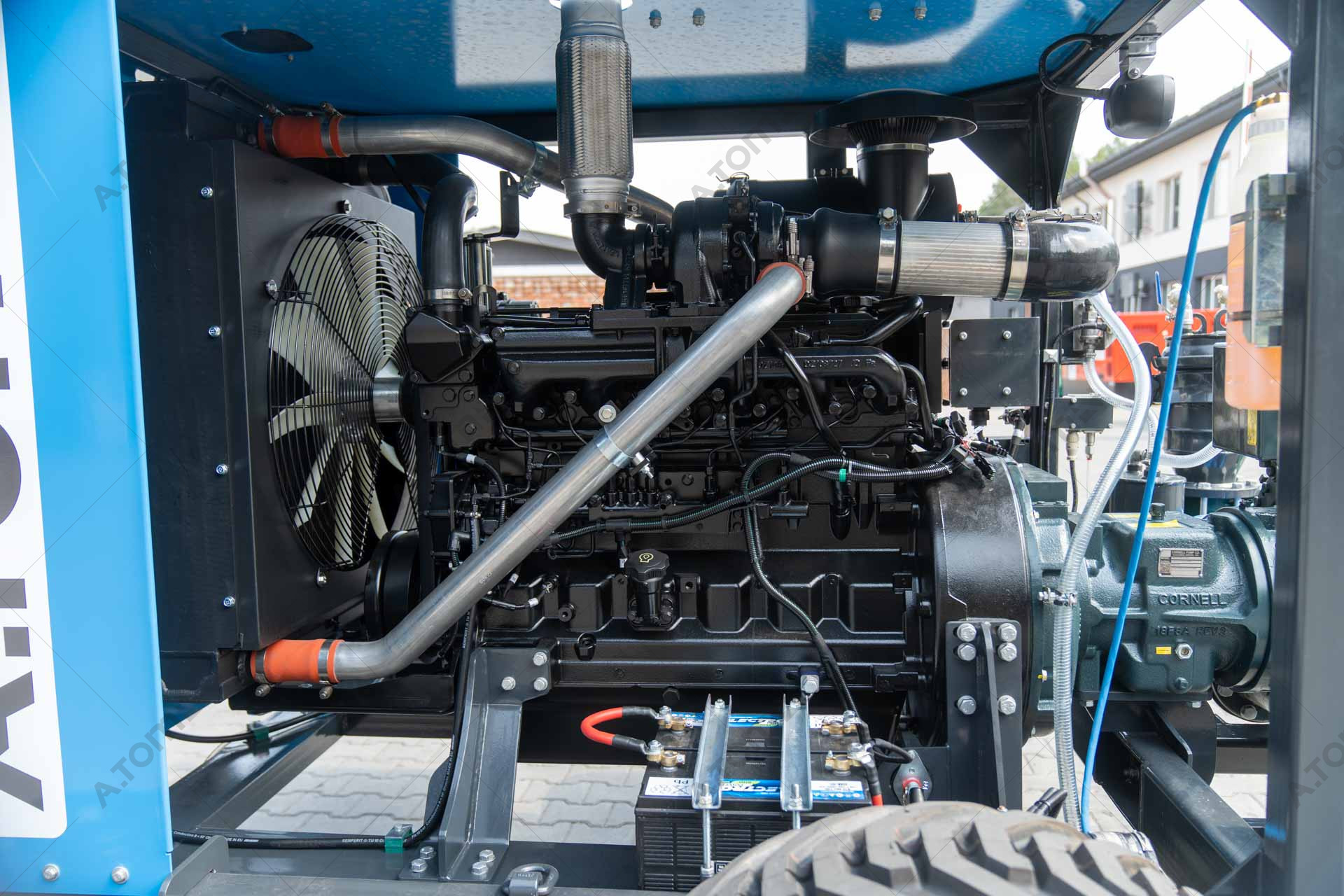

14. Diesel engine JD6068 HF485

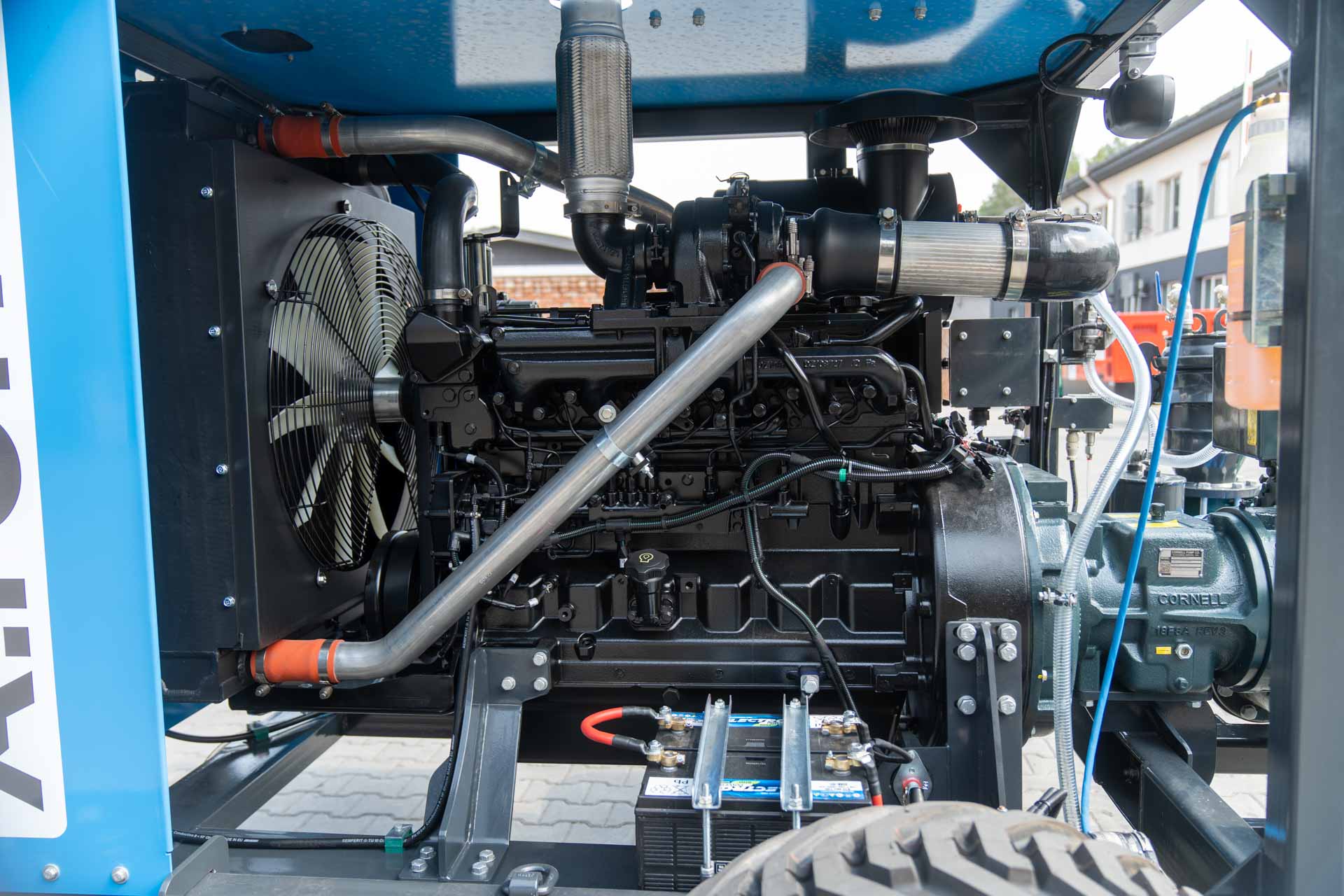

Productive and reliable PU086TI engine with a capacity of 275 hp. — 205 kW (at 2400 rpm) ensures continuous operation of the station.
15. Turbine cooling radiator
16. Doosan air filter

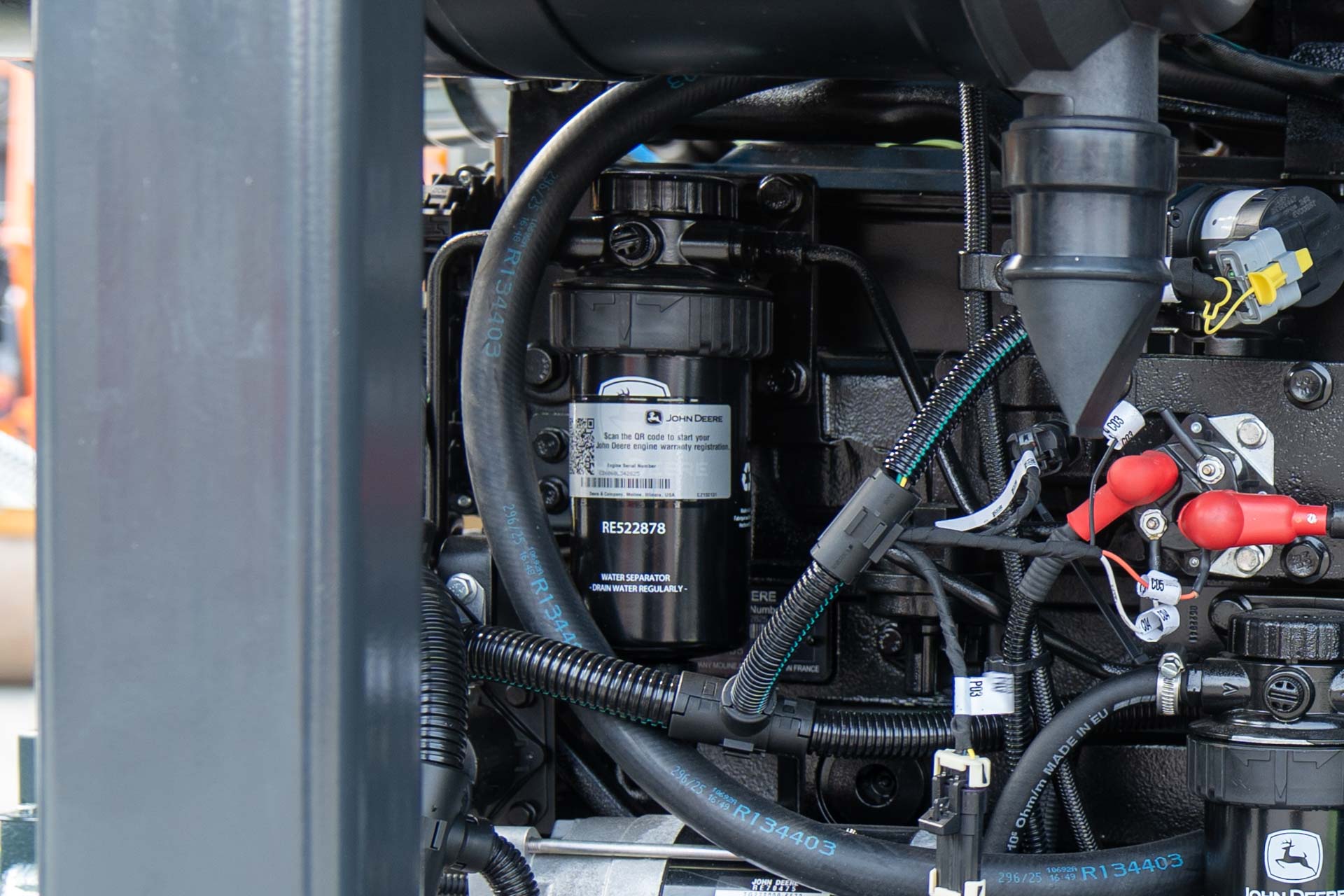

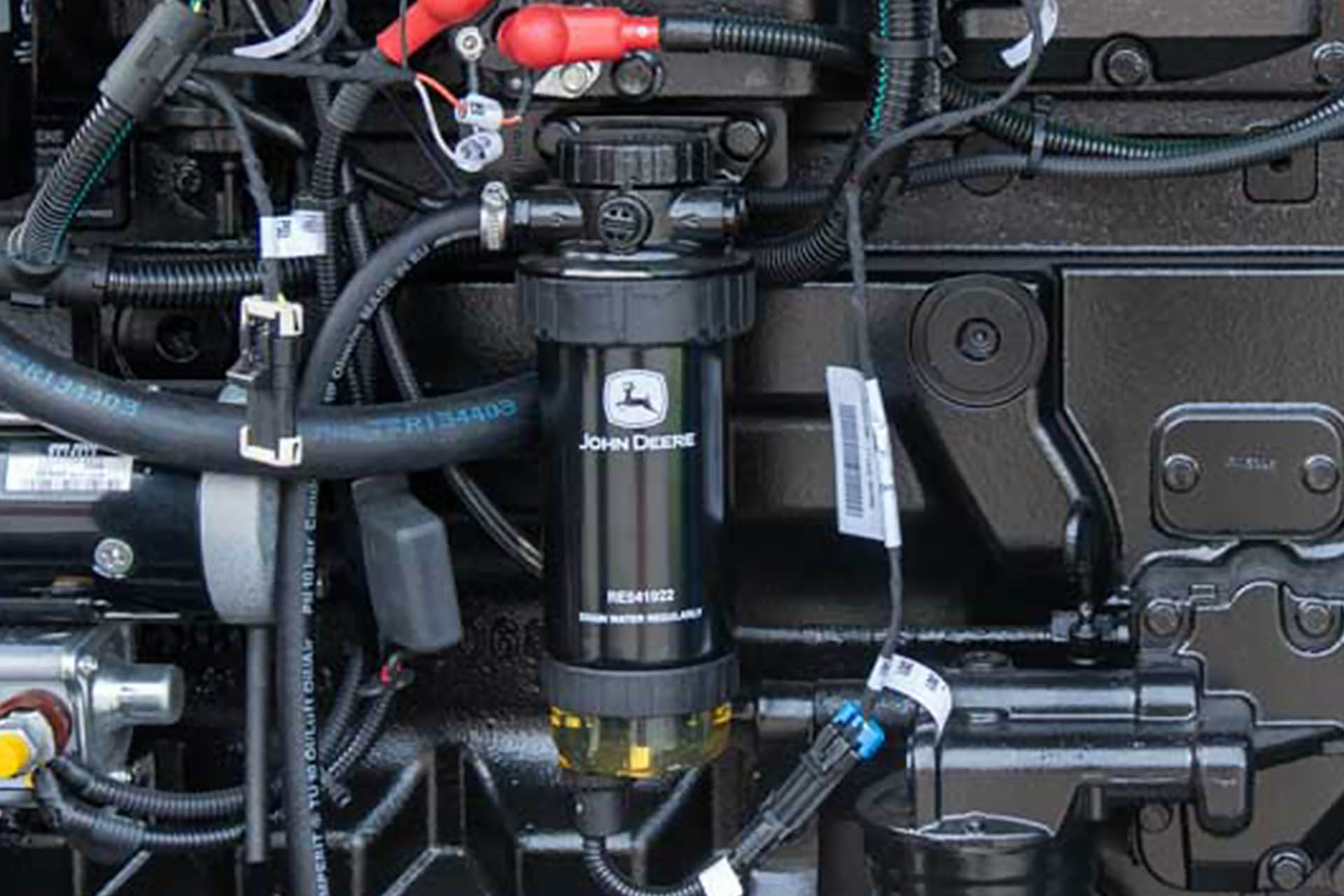

17. John Deere fuel filter
18. Doosan oil filter
19. Battery (12 V) – 2 pcs.

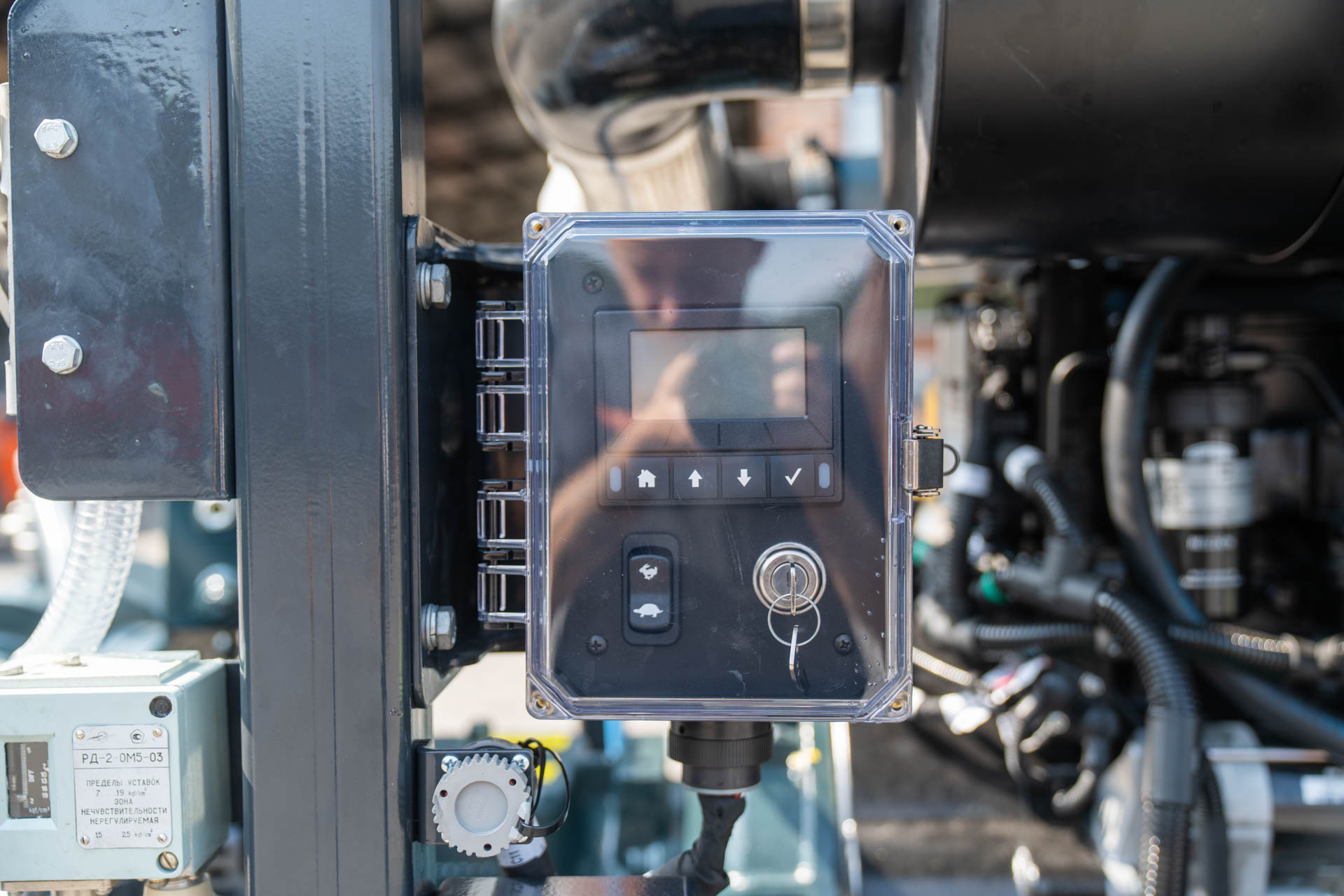

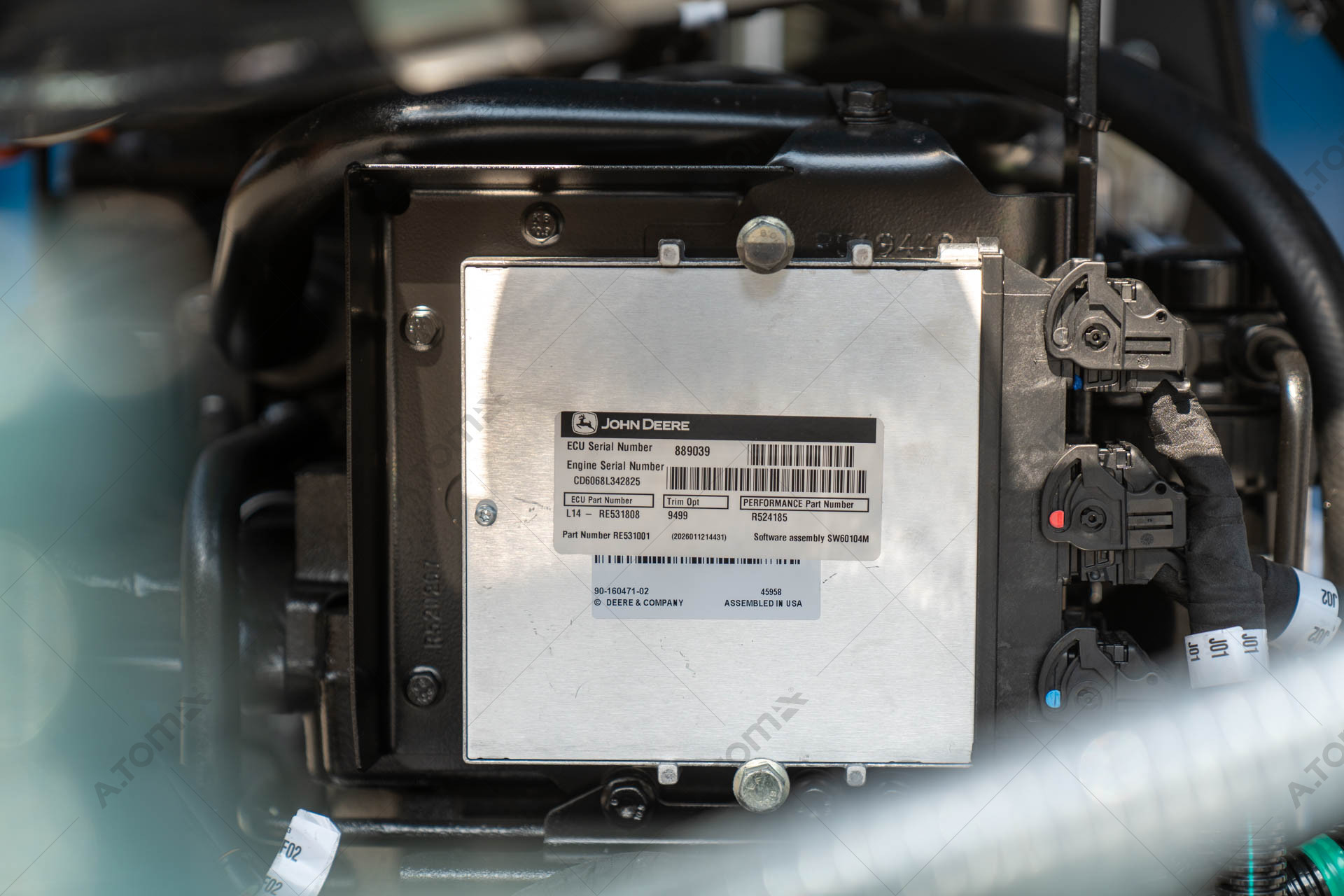

20. John Deere Engine Control and Monitoring Panel
21. Manometer with membrane divider at the pump outlet
22. Pressure control relay at the pump outlet (cutoff)
23. "Wallenstein" vacuum pump (Canada)
The vacuum pump (24 V) manufactured by the Canadian brand provides high pumping speed, suction height, as well as a large volume of air pumping.
24. "Ecoval" locking valve (Turkey)
Regulation of the liquid flow and fixation of the material supplied in the pipeline is carried out with the help of a shut-off cast-iron flange valve with a rubber wedge from one of the best Turkish manufacturers of shut-off fittings, "Ecoval".
25. Measuring tank with lubricant with a capacity of 3 liters
